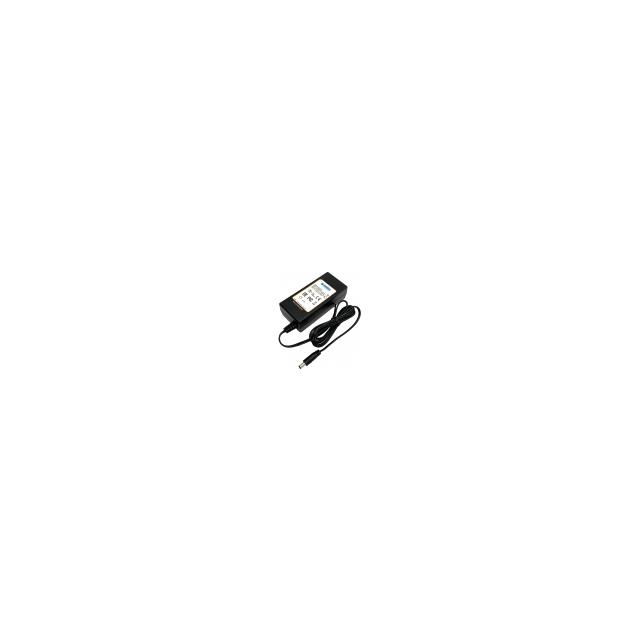

AMA65DR5L-120054Y

Active

aimtec

AC/DC DESKTOP ADAPTER 12V 65W

Search across all available documentation for this part.

Active

aimtec

AC/DC DESKTOP ADAPTER 12V 65W

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Output Connector [x]	Output Connector [diameter]	Output Connector	No Load Power Consumption	Input Type	Cord Length	Cord Length	Efficiency	Weight	Weight	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Current - Output (Max) [Max]	Polarization	Form	Voltage - Output	Power (Watts)	Input Connector	Region Utilized
aimtec AMA65DR5L-120054Y	40 °C	9.5 mm	2.5 mm 5.5 mm	Barrel Plug R/A	210 mW	Cord	60.2 in	1.5 m	CoC Tier 2 Level VI	300 g	0.661 lb	32.5 mm	4.7 in	1.28 in	52.5 mm	2.07 in	119.5 mm	CE cULus FCC UKCA	60950-1 62368-1	90 VAC	264 VAC	ITE (Commercial)	5.4 A	Positive Center	Desktop (Class I)	12 V	65 W	IEC 320-C14	International
aimtec AMA65UR4-240200Y	40 °C	9.5 mm	2.1 mm 5.5 mm	Barrel Plug	210 mW	Fixed Blade	60.2 in	1.5 m	CoC Tier 2 Level VI	300 g	0.661 lb	86.5 mm	4.15 "	3.41 in	42 mm	1.65 in	105.4 mm	CE UL	62368-1	90 VAC	264 VAC	ITE (Commercial)	2 A	Positive Center	Wall Mount (Class II)	24 V	48 W	NEMA 1-15P	North America
aimtec AMA65UR5-120500Y	40 °C	9.5 mm	2.5 mm 5.5 mm	Barrel Plug	210 mW	Fixed Blade	60.2 in	1.5 m	CoC Tier 2 Level VI	300 g	0.661 lb	86.5 mm	4.15 "	3.41 in	42 mm	1.65 in	105.4 mm	CE UL	62368-1	90 VAC	264 VAC	ITE (Commercial)	5 A	Positive Center	Wall Mount (Class II)	12 V	60 W	NEMA 1-15P	North America

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

12V 65 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
