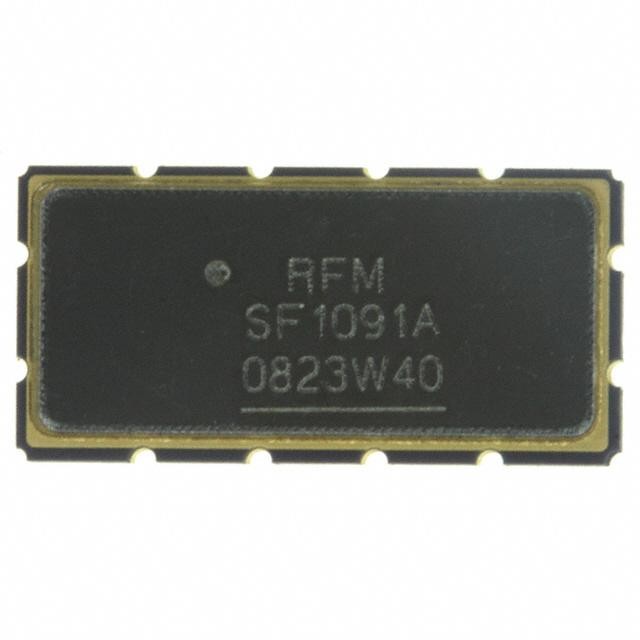

SF1091A
ObsoleteMurata Power Solutions Inc.
FILTER SAW 211MHZ 12SMD
Deep-Dive with AI
Search across all available documentation for this part.
SF1091A
ObsoleteMurata Power Solutions Inc.
FILTER SAW 211MHZ 12SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SF1091A |
|---|---|
| Applications | Cellular, GSM |
| Frequency - Center | 211 MHz |
| Height (Max) [Max] | 2 mm |
| Height (Max) [Max] | 0.079 in |
| Insertion Loss | 7 dB |
| Mounting Type | Surface Mount |
| Package / Case | 12-SMD, No Lead |
| Size / Dimension [x] | 0.524 in |
| Size / Dimension [x] | 13.31 mm |
| Size / Dimension [y] | 0.256 in |
| Size / Dimension [y] | 6.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 10 | $ 11.04 | |
| Tape & Reel (TR) | 250 | $ 6.52 | ||
| 1000 | $ 5.92 | |||
Description
General part information
SF10 Series
211MHz Frequency Cellular, GSM RF SAW Filter (Surface Acoustic Wave) 7dB 500kHz Bandwidth 12-SMD, No Lead
Documents
Technical documentation and resources
No documents available
