113-00061

Active

HELLERMANNTYTON

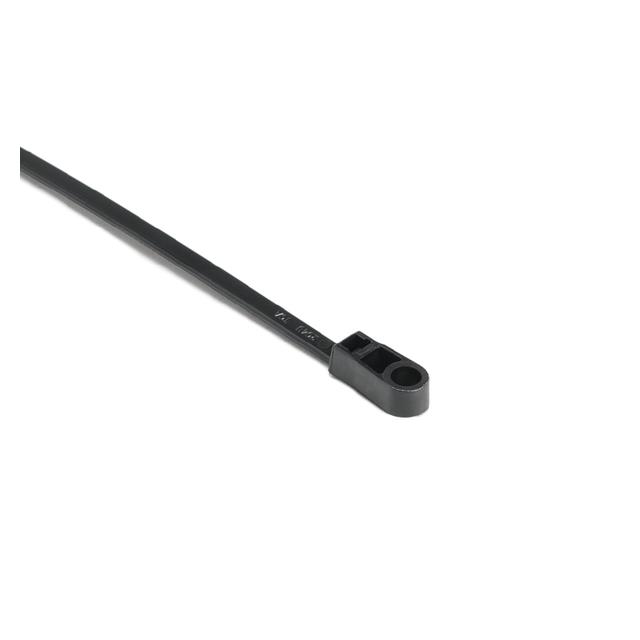

CBL TIE LOCKING BLACK 50LBS 8.3"

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL TIE LOCKING BLACK 50LBS 8.3"

Technical Specifications

Parameters and characteristics for this part

Specification	113-00061

Bundle Diameter [diameter]	45 mm
Bundle Diameter [diameter]	1.77 in
Color	Black
Features	Impact Modified, Heat Stabilized, UV Stabilized
Length - Actual	8.3 "
Length - Actual	0.692 '
Length - Actual	210.8 mm
Length - Approximate	8.25 in
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Mounting Hole, Screw Mount
Tensile Strength	22.68 kg
Tensile Strength	50 lbs
Width [x]	4.7 mm
Width [x]	0.185 in
Wire/Cable Tie Type	Standard, Locking

Part	Color	Tensile Strength	Tensile Strength	Width [x]	Width [x]	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Mounting Type	Material	Length - Approximate	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Wire/Cable Tie Type	Features	Length - Actual	Length - Actual	Length - Actual
HELLERMANNTYTON 113-00060	Black	22.68 kg	50 lbs	5.08 mm	0.2 in	1.8 "	45.72 mm	Mounting Hole Screw Mount	Polyamide (PA66) Nylon 6/6	8 in	8 in	0.667 ft	203.2 mm	Locking Standard
HELLERMANNTYTON 113-00061	Black	22.68 kg	50 lbs	4.7 mm	0.185 in	1.77 in	45 mm	Mounting Hole Screw Mount	Polyamide (PA66) Nylon 6/6	8.25 in				Locking Standard	Heat Stabilized Impact Modified UV Stabilized	8.3 "	0.692 '	210.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Standard, Locking Black 1.77" (45.00mm) 0.185" (4.70mm) 50 lbs (22.68 kg)

Technical documentation and resources
