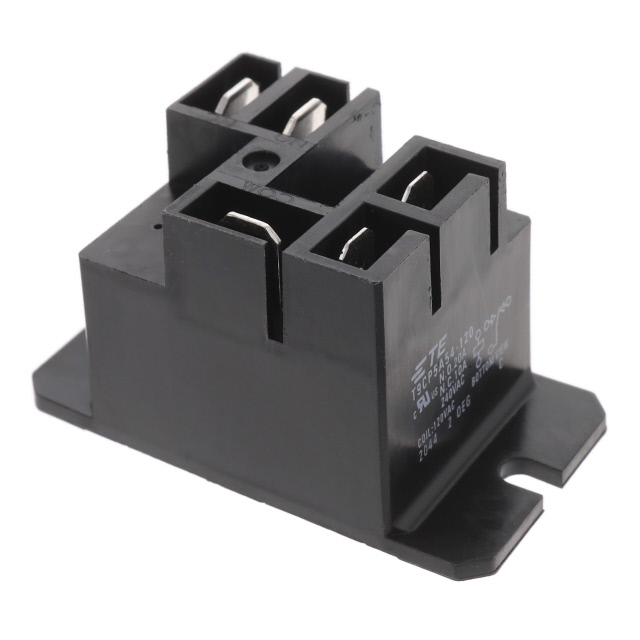

T9CP5A54-120
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 20A 120V
Deep-Dive with AI
Search across all available documentation for this part.
T9CP5A54-120
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 20A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T9CP5A54-120 |
|---|---|
| Approval Agency | VDE, CSA, UR |
| Coil Current | 42.9 mA |
| Coil Insulation | Class F |
| Coil Resistance | 2.8 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 120 VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Contact Rating (Current) | 20 A |
| Load - Max Switching | 5540 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 96 VAC |
| Must Release Voltage | 12 VAC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 15 ms |
| Switching Voltage [Max] | 277 VAC |
| Termination Style | Quick Connect - 0.187"/0.250" |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.06 | |
| 10 | $ 7.91 | |||
| 25 | $ 7.50 | |||
| 40 | $ 7.29 | |||
| 80 | $ 7.00 | |||
| 230 | $ 6.58 | |||
| 440 | $ 6.34 | |||
| 945 | $ 6.06 | |||
Description
General part information
T9CP5 Series
General Purpose Relay SPDT (1 Form C) 120VAC Coil Chassis Mount
