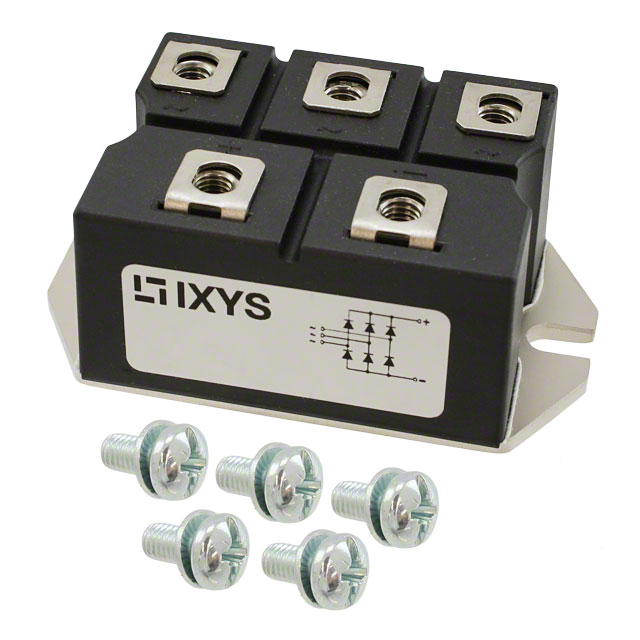

VUO82-08NO7

Active

IXYS

BRIDGE RECT 3P 800V 88A PWS-D

Search across all available documentation for this part.

Active

IXYS

BRIDGE RECT 3P 800V 88A PWS-D

Technical Specifications

Parameters and characteristics for this part

Specification	VUO82-08NO7

Current - Average Rectified (Io)	88 A
Current - Reverse Leakage @ Vr	300 µA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	PWS-D
Supplier Device Package	PWS-D
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.6 V
Voltage - Peak Reverse (Max) [Max]	800 V

Part	Current - Average Rectified (Io)	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Package / Case	Current - Reverse Leakage @ Vr	Diode Type	Supplier Device Package	Voltage - Peak Reverse (Max)
IXYS VUO82-08NO7	88 A	150 °C	-40 °C	Standard	800 V	1.6 V	Chassis Mount	PWS-D	300 µA	Three Phase	PWS-D
IXYS VUO82-18NO7	88 A	150 °C	-40 °C	Standard	1.8 kV	1.6 V	Chassis Mount	PWS-D	300 µA	Three Phase	PWS-D
IXYS VUO82-12NO7	88 A	150 °C	-40 °C	Standard	1.2 kV	1.6 V	Chassis Mount	PWS-D	300 µA	Three Phase	PWS-D
IXYS VUO82-16NO7	88 A	150 °C	-40 °C	Standard		1.6 V	Chassis Mount	PWS-D	300 µA	Three Phase	PWS-D	1.6 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 25.50

General part information

Bridge Rectifier Three Phase Standard 800 V Chassis Mount PWS-D
