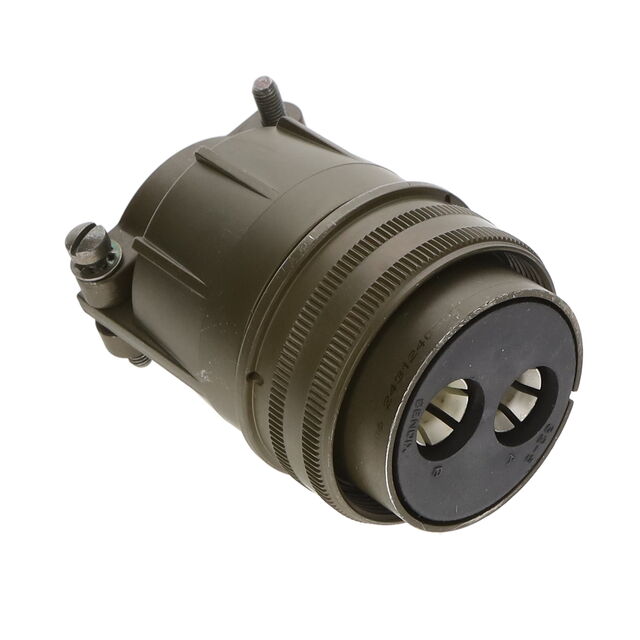

MS3106F32-5S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3106F32-5S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106F32-5S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	150 A
Features	Cable Clamp, Coupling Nut, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	32-5
Shielding	Unshielded
Voltage Rating	1250 VDC, 900 VAC

MS3106F32 Series

Part	Contact Material	Applications	Orientation	Insert Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Shell Size - Insert	Primary Material	Shielding	Ingress Protection	Number of Positions	Cable Opening [custom]	Cable Opening [custom]	Color	Shell Material	Qualification	Mounting Type	Features	Contact Finish - Mating	Shell Finish	Voltage Rating	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Current Rating (Amps)
Amphenol Industrial Operations MS3106F32-17S	Copper Alloy	Marine Military	N	Neoprene	Female Sockets Plug	-55 °C	125 °C	Military	32-17	Metal	Unshielded	Environment Resistant	4	1.156 in	29.36 mm	Olive Drab	Aluminum Alloy	MIL-DTL-5015	Free Hanging (In-Line)	Backshell Cable Clamp Coupling Nut	Silver	Olive Drab Chromate over Cadmium
Amphenol Industrial Operations MS3106F32-15P	Copper Alloy	Marine Military	N	Neoprene	Male Pins Plug	-55 °C	125 °C	Military		Metal	Unshielded	Environment Resistant	8			Olive Drab	Aluminum Alloy	MIL-DTL-5015	Free Hanging (In-Line)	Backshell Cable Clamp Coupling Nut	Silver	Olive Drab Chromate over Cadmium	900 VAC 1250 VDC	15	32	23 A 150 A
Amphenol Industrial Operations MS3106F32-22P	Copper Alloy	Marine Military	N	Neoprene	Male Pins Plug	-55 °C	125 °C	Military		Metal	Unshielded	Environment Resistant	54	1.156 in	29.36 mm	Olive Drab	Aluminum Alloy	MIL-DTL-5015	Free Hanging (In-Line)	Backshell Cable Clamp Coupling Nut	Silver	Olive Drab Chromate over Cadmium		32	22
Amphenol Industrial Operations MS3106F32-5P	Copper Alloy	Marine Military	N	Neoprene	Male Pins Plug	-55 °C	125 °C	Military	32-5	Metal	Unshielded	Environment Resistant	2			Olive Drab	Aluminum Alloy	MIL-DTL-5015	Free Hanging (In-Line)	Backshell Cable Clamp Coupling Nut	Silver	Olive Drab Chromate over Cadmium	900 VAC 1250 VDC			150 A
Amphenol Industrial Operations MS3106F32-10P
Amphenol Industrial Operations MS3106F32-5S	Copper Alloy	Marine Military	N	Neoprene	Female Sockets Plug	-55 °C	125 °C	Military	32-5	Metal	Unshielded	Environment Resistant	2			Olive Drab	Aluminum Alloy	MIL-DTL-5015	Free Hanging (In-Line)	Backshell Cable Clamp Coupling Nut	Silver	Olive Drab Chromate over Cadmium	900 VAC 1250 VDC			150 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 341.15
		10	$ 316.13
		25	$ 304.76

Description

General part information

MS3106F32 Series

2 Position Circular Connector Plug, Female Sockets Solder Cup
