SH01D0512A
ObsoleteDelta Electronics

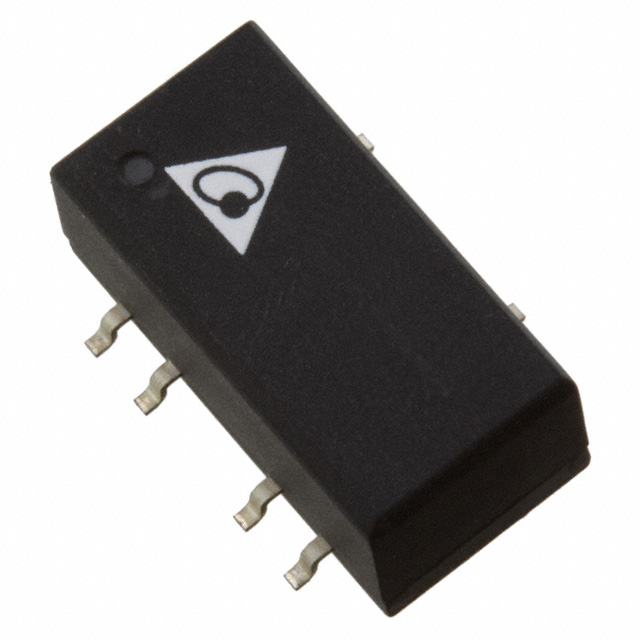

DC DC CONVERTER +/-12V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SH01D0512A
ObsoleteDelta Electronics
DC DC CONVERTER +/-12V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SH01D0512A |
|---|---|
| Applications | Medical |
| Current - Output (Max) [Max] | 42 mA |
| Current - Output (Max) [Max] | 42 mA |
| Efficiency | 78 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SMD Module, 5 Leads |
| Size / Dimension [x] | 13.7 mm |
| Size / Dimension [x] | 0.54 in |
| Size / Dimension [y] | 0.31 " |
| Size / Dimension [y] | 8 mm |
| Size / Dimension [z] | 7 mm |
| Size / Dimension [z] | 0.28 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SH01D Series
Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 4.5V - 5.5V Input
