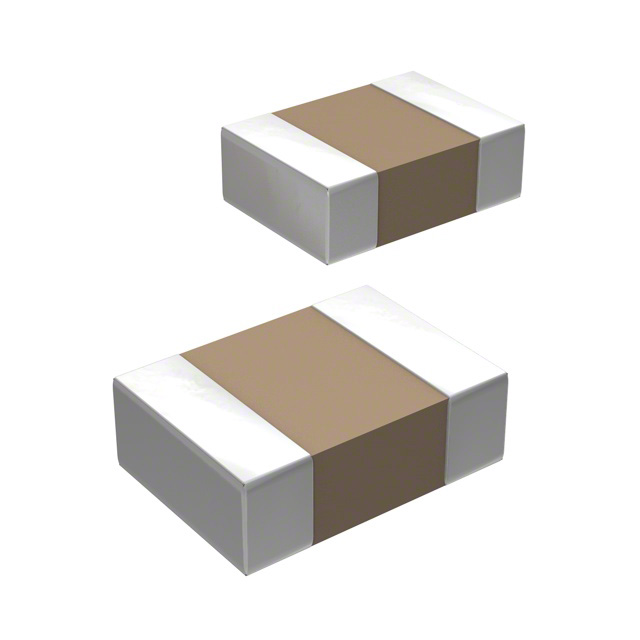

CF453215-2R7K
ObsoleteBourns Inc.
FIXED IND 2.7UH 370MA 750MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CF453215-2R7K
ObsoleteBourns Inc.
FIXED IND 2.7UH 370MA 750MOHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CF453215-2R7K |
|---|---|
| Current Rating (Amps) | 370 mA |
| DC Resistance (DCR) [Max] | 750 mOhm |
| Frequency - Self Resonant | 50 MHz |
| Height - Seated (Max) [Max] | 0.067 in |
| Height - Seated (Max) [Max] | 1.7 mm |
| Inductance | 2.7 µH |
| Inductance Frequency - Test | 7.96 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1812 (4532 Metric) |
| Q @ Freq | 7.96 MHz, 50 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
| Tolerance | 10 % |
| Type | Multilayer |
CF453215 Series
| Part | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Type | DC Resistance (DCR) [Max] | Frequency - Self Resonant | Inductance Frequency - Test | Q @ Freq | Current Rating (Amps) | Mounting Type | Inductance | Shielding | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Material - Core |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 10 % | -55 °C | 125 °C | 1812 (4532 Metric) | Multilayer | 1.2 Ohm | 27 MHz | 7.96 MHz | 7.96 MHz 50 | 285 mA | Surface Mount | 6.8 µH | Shielded | 0.067 in | 1.7 mm | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | Ferrite |
Bourns Inc. | 10 % | -55 °C | 125 °C | 1812 (4532 Metric) | Multilayer | 1.1 Ohm | 33 MHz | 7.96 MHz | 7.96 MHz 50 | 300 mA | Surface Mount | 5.6 µH | Shielded | 0.067 in | 1.7 mm | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | Ferrite |
Bourns Inc. | 10 % | -55 °C | 125 °C | 1812 (4532 Metric) | Multilayer | 750 mOhm | 50 MHz | 7.96 MHz | 7.96 MHz 50 | 370 mA | Surface Mount | 2.7 µH | Shielded | 0.067 in | 1.7 mm | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | Ferrite |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CF453215 Series
2.7 µH Shielded Multilayer Inductor 370 mA 750mOhm Max 1812 (4532 Metric)
