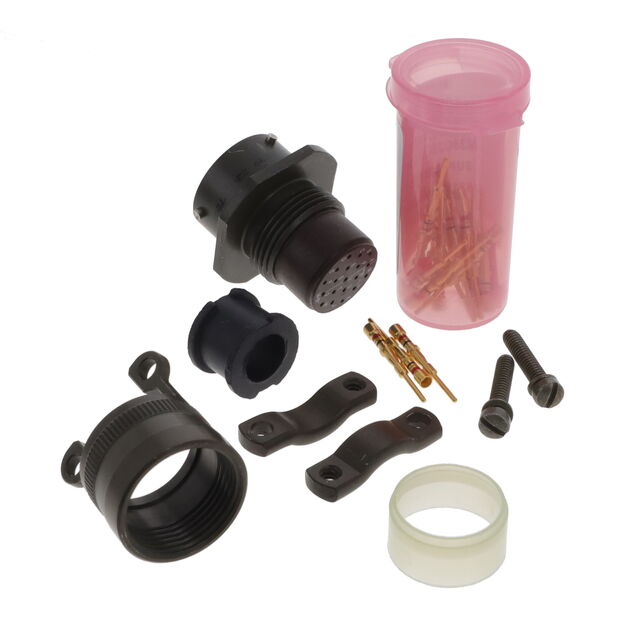

MS3121F14-19P

Active

Amphenol Industrial Operations

CONN RCPT MALE 19POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3121F14-19P

Active

Amphenol Industrial Operations

CONN RCPT MALE 19POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3121F14-19P

Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Backshell Material, Plating	Aluminum, Olive Drab Chromate over Cadmium
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	19
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max] [custom]	19
Shell Size - Insert [Min] [custom]	14
Shielding	Unshielded
Termination	Crimp

MS3121F14 Series

Part	Fastening Type	Contact Finish - Mating	Grade	Termination	Contact Material	Mounting Type	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Color	Ingress Protection	Qualification	Number of Positions	Shell Material	Current Rating (Amps)	Applications	Shell Size - Insert	Orientation	Voltage Rating	Connector Type	Shell Finish	Primary Material	Features	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Backshell Material, Plating
Amphenol Industrial Operations MS3121F14-18P(LC)
Amphenol Industrial Operations MS3121F14-12S	Bayonet Lock	Gold	Military	Crimp	Copper Alloy	Free Hanging (In-Line)	Neoprene	-55 °C	125 °C	Unshielded	Olive Drab	Environment Resistant	MIL-DTL-26482 Series I	12	Aluminum	7.5 A 13 A	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	14-12	N	600 VAC	Receptacle Female Sockets	Olive Drab Chromate over Cadmium	Metal	Backshell Cable Clamp
Amphenol Industrial Operations MS3121F14-15S(LC)
Amphenol Industrial Operations MS3121F14-18S
Amphenol Industrial Operations MS3121F14-15P	Bayonet Lock	Gold	Military	Crimp	Copper Alloy	Free Hanging (In-Line)	Neoprene	-55 °C	125 °C	Unshielded	Olive Drab	Environment Resistant	MIL-DTL-26482 Series I	15	Aluminum	7.5 A 13 A	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military		N	600 VAC	Male Pins Receptacle	Olive Drab Chromate over Cadmium	Metal	Backshell Cable Clamp	14	15
Amphenol Industrial Operations MS3121F14-12P(LC)
Amphenol Industrial Operations MS3121F14-5S	Bayonet Lock	Gold	Military	Crimp	Copper Alloy	Free Hanging (In-Line)	Neoprene	-55 °C	125 °C	Unshielded	Olive Drab	Environment Resistant	MIL-DTL-26482 Series I		Aluminum	13 A	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	14-5	N	1000 VAC	Receptacle Female Sockets	Olive Drab Chromate over Cadmium	Metal	Backshell Cable Clamp
Amphenol Industrial Operations MS3121F14-5P(LC)
Amphenol Industrial Operations MS3121F14-19P	Bayonet Lock	Gold	Military	Crimp	Copper Alloy	Free Hanging (In-Line)	Neoprene	-55 °C	125 °C	Unshielded	Olive Drab	Environment Resistant	MIL-DTL-26482 Series I	19	Aluminum		Aerospace Communication Systems Industrial Instrumentation Mass Transit Military		N		Male Pins Receptacle	Olive Drab Chromate over Cadmium	Metal	Backshell Cable Clamp			19	14	Aluminum Olive Drab Chromate over Cadmium

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 103.23
		10	$ 94.72
		25	$ 91.08
		50	$ 88.05
		100	$ 83.19

Description

General part information

MS3121F14 Series

19 Position Circular Connector Receptacle, Male Pins Crimp
