VESD15A1-HD1-G4-08
ObsoleteVishay General Semiconductor - Diodes Division

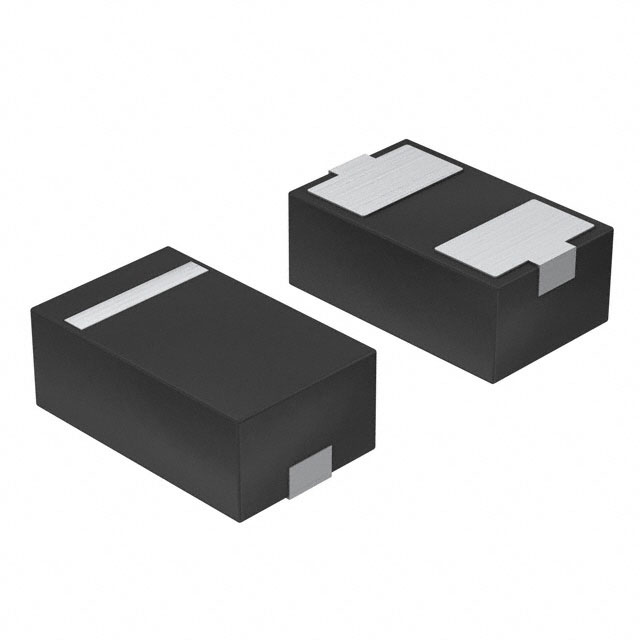

TVS DIODE 15VWM 27VC LLP1006-2L
Deep-Dive with AI
Search across all available documentation for this part.
VESD15A1-HD1-G4-08
ObsoleteVishay General Semiconductor - Diodes Division
TVS DIODE 15VWM 27VC LLP1006-2L
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VESD15A1-HD1-G4-08 |
|---|---|
| Applications | General Purpose |
| Capacitance @ Frequency | 45 pF |
| Current - Peak Pulse (10/1000µs) | 6 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | SOD-882 |
| Power - Peak Pulse | 150 W |
| Power Line Protection | False |
| Supplier Device Package | LLP1006-2L |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 15.5 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 27 V |
| Voltage - Reverse Standoff (Typ) | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.30 | |
| 10 | $ 0.18 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.08 | |||
| 2000 | $ 0.07 | |||
| Digi-Reel® | 1 | $ 0.30 | ||
| 10 | $ 0.18 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.08 | |||
| 2000 | $ 0.07 | |||
| Tape & Reel (TR) | 8000 | $ 0.06 | ||
| 16000 | $ 0.05 | |||
| 24000 | $ 0.05 | |||
| 56000 | $ 0.05 | |||
| 200000 | $ 0.04 | |||
Description
General part information
VESD15 Series
27V Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount LLP1006-2L
