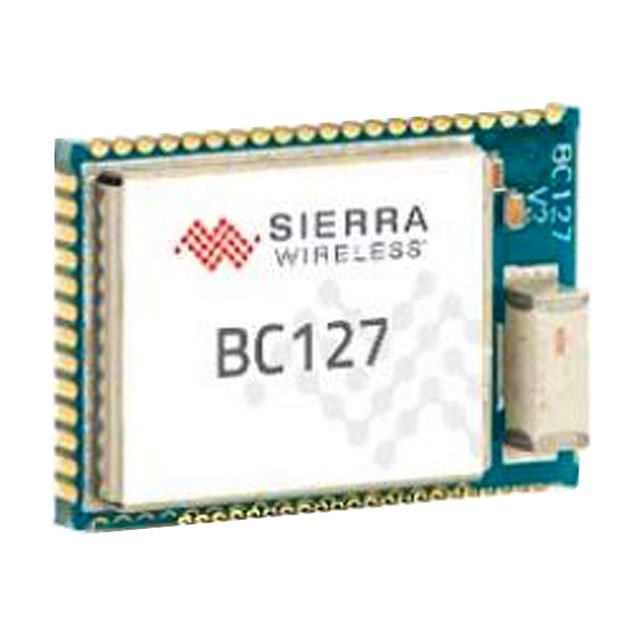

BC127-EXT-APTX_1103783

Obsolete

Semtech Corporation

RF TXRX MOD BT CAST SMD

Search across all available documentation for this part.

Obsolete

Semtech Corporation

RF TXRX MOD BT CAST SMD

Technical Specifications

Parameters and characteristics for this part

Specification	BC127-EXT-APTX_1103783

Antenna Type	Antenna Not Included, Castellation
Current - Receiving	15 mA
Current - Transmitting	15 mA
Data Rate	3 Mbps
Frequency [Max]	2.48 GHz
Frequency [Min]	2.4 GHz
Modulation	QPSK, GFSK, 8PSK
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Output	10 dBm
Protocol	Bluetooth v4.2
RF Family/Standard	Bluetooth
Sensitivity	-88 dBm
Voltage - Supply [Max]	4.7 V
Voltage - Supply [Min]	3.3 V

Part	Modulation	Power - Output	Protocol	Operating Temperature [Max]	Operating Temperature [Min]	Sensitivity	Current - Receiving	Package / Case	Antenna Type	Data Rate	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	RF Family/Standard	Frequency [Min]	Frequency [Max]	Current - Transmitting	Type	Supplied Contents	For Use With/Related Products	Frequency	Memory Size
Semtech Corporation BC127-EXT-HD_1103784	8PSK GFSK QPSK	10 dBm	Bluetooth v4.2	85 °C	-40 °C	-88 dBm	15 mA	Module	Antenna Not Included Castellation	3 Mbps	Surface Mount	4.7 V	3.3 V	Bluetooth	2.4 GHz	2.48 GHz	15 mA
Semtech Corporation BC127-HD DIS KIT_6001115																		Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)	Board(s)	BC127-HD	2.4 GHz
Semtech Corporation BC127-DISKIT001_6001098																		Transceiver; Bluetooth® Smart Ready 4.x Dual Mode (BLE)	Board(s) Cable(s)	BC127	2.4 GHz
Semtech Corporation BC127-1103383	DPSK DQPSK GFSK	10 dBm	Bluetooth v4.0 Dual Mode	85 °C	-40 °C	-88 dBm	15 mA	Module	Integrated Chip	3 Mbps	Surface Mount	4.7 V	3.3 V	Bluetooth			15 mA				2.4 GHz	16 MB
Semtech Corporation BC127-APTX_1103708	8PSK GFSK QPSK	10 dBm	Bluetooth v4.2	85 °C	-40 °C	-88 dBm	15 mA	Module	Integrated Chip	3 Mbps	Surface Mount	4.7 V	3.3 V	Bluetooth	2.4 GHz	2.48 GHz	15 mA
Semtech Corporation BC127-EXT-APTX_1103783	8PSK GFSK QPSK	10 dBm	Bluetooth v4.2	85 °C	-40 °C	-88 dBm	15 mA	Module	Antenna Not Included Castellation	3 Mbps	Surface Mount	4.7 V	3.3 V	Bluetooth	2.4 GHz	2.48 GHz	15 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bluetooth Bluetooth v4.2 Transceiver Module 2.4GHz ~ 2.48GHz Antenna Not Included, Castellation Surface Mount
