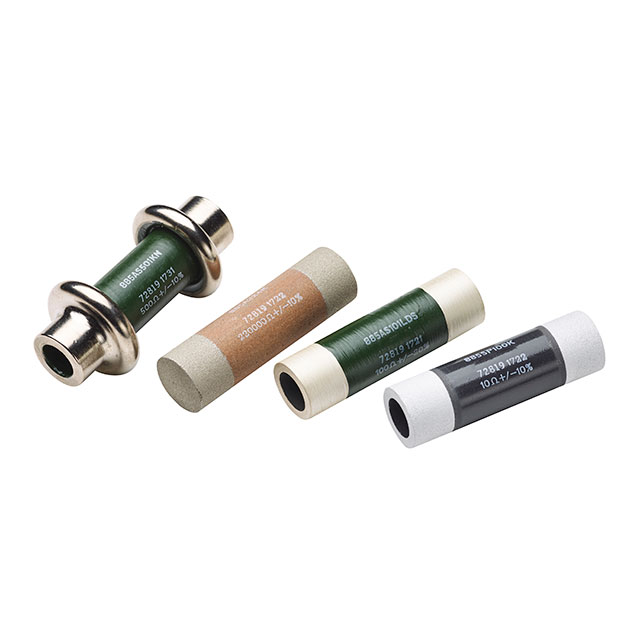

891SP250K

Active

Ohmite

RES CHAS MNT 25 OHM 10% 750W

Search across all available documentation for this part.

Active

Ohmite

RES CHAS MNT 25 OHM 10% 750W

Technical Specifications

Parameters and characteristics for this part

Specification	891SP250K

Coating, Housing Type	Ceramic
Composition	Ceramic
Features	Pulse Withstanding, Non-Inductive
Lead Style	Ferrule Ends
Mounting Feature	Brackets (not included)
Operating Temperature [Max]	350 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial, Tubular
Power (Watts)	750 W
Resistance	25 Ohms
Size / Dimension [diameter]	50.8 mm
Size / Dimension [diameter]	2 in
Size / Dimension [x]	457.2 mm
Size / Dimension [x]	18 in
Temperature Coefficient [Max]	2000 ppm/°C
Temperature Coefficient [Min]	-800 ppm/°C
Tolerance	10 %

Part	Temperature Coefficient [Max]	Temperature Coefficient [Min]	Package / Case	Lead Style	Composition	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Feature	Coating, Housing Type	Power (Watts)	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Resistance
Ohmite 891SP250K	2000 ppm/°C	-800 ppm/°C	Axial Tubular	Ferrule Ends	Ceramic	10 %	350 °C	-55 °C	Non-Inductive Pulse Withstanding	Brackets (not included)	Ceramic	750 W	457.2 mm	50.8 mm	2 in	18 in	25 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

25 Ohms ±10% 750W Ceramic Chassis Mount Resistor

Technical documentation and resources

No documents available
