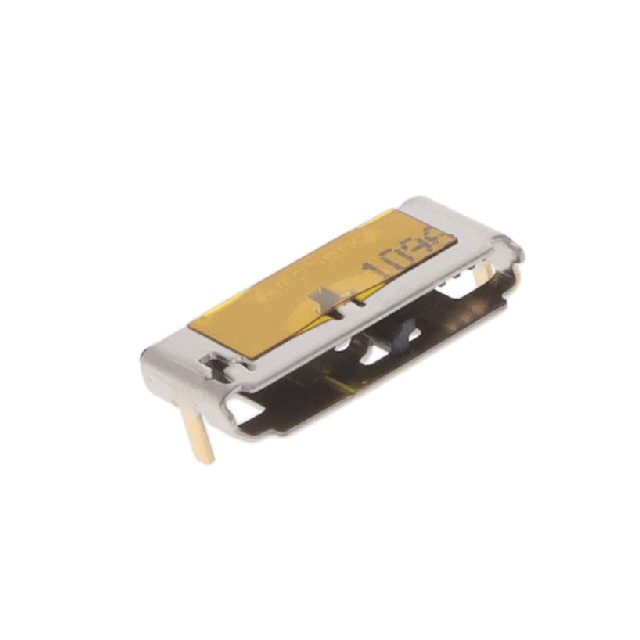

GSB343K33AHR
ActiveAmphenol ICC (Commercial Products)
USB3.0, MICRO B, RECEPTACLE,RIGH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GSB343K33AHR
ActiveAmphenol ICC (Commercial Products)
USB3.0, MICRO B, RECEPTACLE,RIGH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GSB343K33AHR |
|---|---|
| Connector Type | USB - micro B |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.8 A, 0.25 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts | 10 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.63 | |
| 10 | $ 1.42 | |||
| 25 | $ 1.35 | |||
| 50 | $ 1.32 | |||
| 100 | $ 1.26 | |||
| 250 | $ 1.14 | |||
| 500 | $ 1.05 | |||
| Digi-Reel® | 1 | $ 1.63 | ||
| 10 | $ 1.42 | |||
| 25 | $ 1.35 | |||
| 50 | $ 1.32 | |||
| 100 | $ 1.26 | |||
| 250 | $ 1.14 | |||
| 500 | $ 1.05 | |||
| Tape & Reel (TR) | 1200 | $ 0.90 | ||
| 2400 | $ 0.84 | |||
| 6000 | $ 0.80 | |||
| 8400 | $ 0.78 | |||
Description
General part information
GSB343K Series
USB - micro B USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 10 Position Surface Mount, Right Angle; Through Hole
