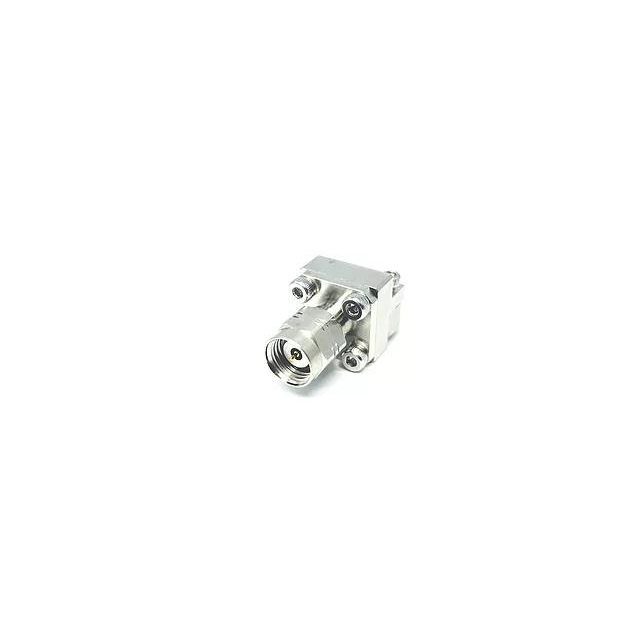

EL01MS002
ActiveWITHWAVE CO LTD
END LAUNCH 1.85 MM CONNECTOR, DC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EL01MS002
ActiveWITHWAVE CO LTD
END LAUNCH 1.85 MM CONNECTOR, DC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EL01MS002 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | 1.85 mm |
| Connector Type | Male Pin, Plug |
| Contact Termination | Compression |
| Features | Mounting Hardware |
| Frequency - Max [Max] | 67 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mounting Type | Board Edge, End Launch |
| Number of Ports | 1 |
| Shield Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 118.60 | |
| 10 | $ 112.60 | |||
| 25 | $ 106.70 | |||
| 50 | $ 100.80 | |||
Description
General part information
EL01M Series
1.85mm Connector Plug, Male Pin 50 Ohms Board Edge, End Launch Compression
