2822419

Active

Phoenix Contact

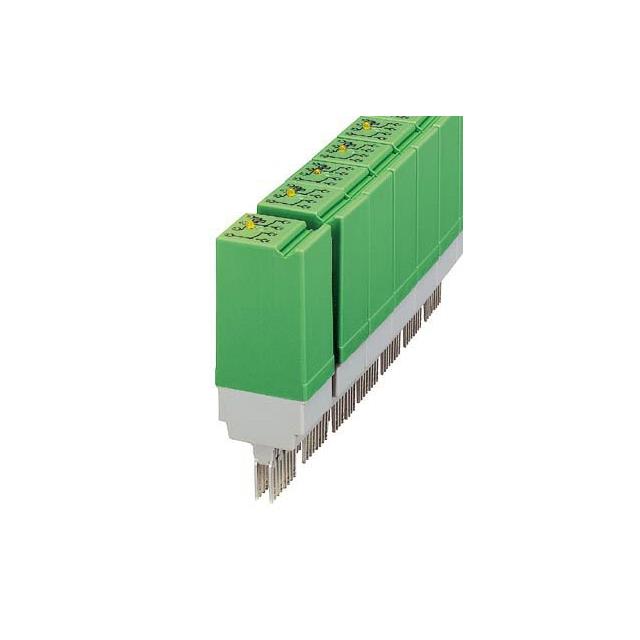

RELAY GEN PURPOSE DPDT 3A 230V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 3A 230V

Technical Specifications

Parameters and characteristics for this part

Part	Operate Time	Mounting Type	Relay Type	Contact Rating (Current)	Coil Voltage	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Features	Switching Voltage	Coil Type	Coil Resistance	Approval Agency	Coil Current	Release Time	Termination Style	Contact Material
Phoenix Contact 2822451	6 ms	Socketable	General Purpose	5 A	230 VAC	DPDT (2 Form C)	50 °C	-20 C	Lighted Indicator Varistor	250 VAC 250 VDC	Non Latching	57.5 kOhms	GOST	4 mA	7 ms	Plug In	Silver Nickel (AgNi)
Phoenix Contact 2822419	6 ms	Socketable	General Purpose	3 A	230 VAC	DPDT (2 Form C)	50 °C	-20 C	Lighted Indicator	250 VAC 250 VDC	Non Latching	57.5 kOhms	GOST	4 mA	7 ms	Plug In	Silver Nickel (AgNi)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 232.31

General part information

General Purpose Relay DPDT (2 Form C) 230VAC/DC Coil Socketable

Technical documentation and resources
