382-015-112L565

Obsolete

MH Connectors

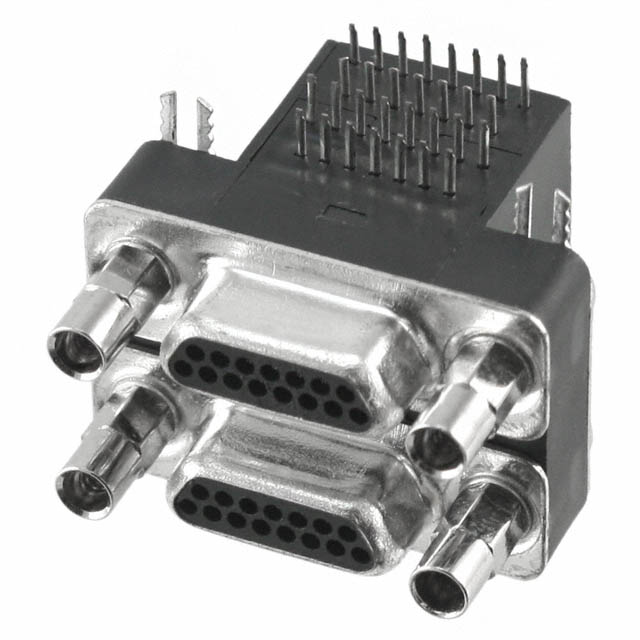

CONN MICRO-D PLUG 15POS R/A SLDR

Search across all available documentation for this part.

Obsolete

MH Connectors

CONN MICRO-D PLUG 15POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	382-015-112L565

Connector Style	Micro-D - Stacked, D-Type
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Thermoplastic
Features	Shielded, Board Lock
Flange Feature	Mating Side, Female Screwlock (2-56)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	0.043
Shell Size, Connector Layout [custom]	0.05
Termination	Solder

Part	Contact Type	Contact Material	Number of Positions	Features	Number of Rows	Connector Style	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Dielectric Material	Contact Finish	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]
MH Connectors 382-015-112L565	Signal	Copper Alloy	15	Board Lock Shielded	2	D-Type Micro-D - Stacked	Board Edge Right Angle Through Hole	0.043	0.05	Solder	UL94 V-0	15 µin	0.38 µm	Female Screwlock (2-56) Mating Side	Thermoplastic	Gold	Male Pins Plug	85 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15, 15 Position D-Type, Micro-D - Stacked Plug, Male Pins Connector
