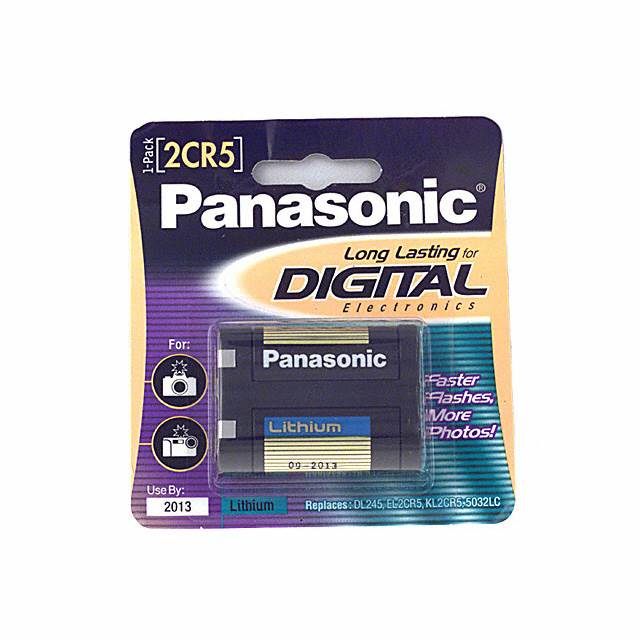

2CR-5MPA/1B
ActivePanasonic Industrial Automation Sales
BATTERY LITHIUM 6V 2CR5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2CR-5MPA/1B |
|---|---|
| Battery Cell Size | 2CR5 |
| Battery Chemistry | Lithium Manganese Dioxide |
| Capacity | 1.55 Ah |
| Discharge Rate | 20 mA |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension [x] | 34 mm |
| Size / Dimension [x] | 1.34 in |
| Size / Dimension [y] | 0.67 in |
| Size / Dimension [y] | 17 mm |
| Size / Dimension [z] | 1.77 in |
| Size / Dimension [z] | 45 mm |
| Termination Style | Flat Top (Side Contacts) |
| Voltage - Rated | 6 VDC |
| Weight | 38 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.19 | |
| 24 | $ 8.50 | |||
| 48 | $ 7.90 | |||
| 108 | $ 7.06 | |||
| 300 | $ 6.66 | |||
| 504 | $ 6.46 | |||
| Retail Package | 1 | $ 10.20 | ||
Description
General part information
2CR-5MPA Series
2CR5 Lithium Manganese Dioxide 6 V Battery Non-Rechargeable (Primary)
