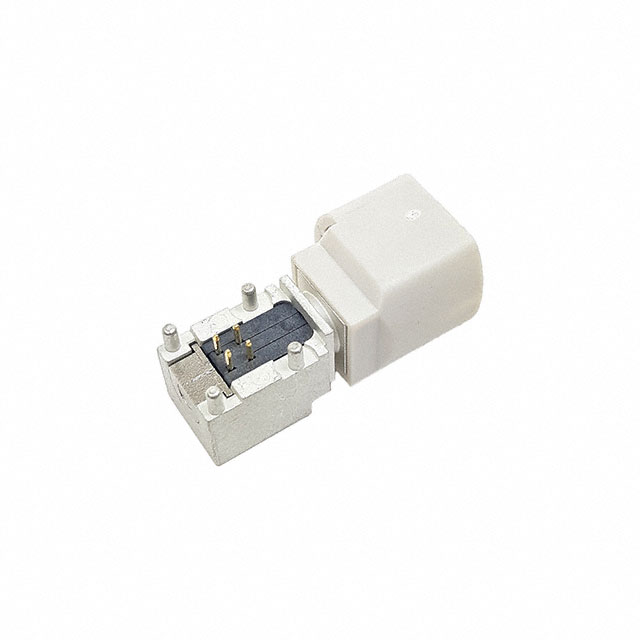

HSDWBRPPCB13B

Active

Amphenol ICC (Commercial Products)

CONN HSD+0 R/A PLUG B CODE

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN HSD+0 R/A PLUG B CODE

Technical Specifications

Parameters and characteristics for this part

Part	Center Contact Plating	Fastening Type	Impedance	Features	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Body Finish	Dielectric Material	Connector Type	Body Material	Mounting Type	Center Contact Material	Number of Ports	Connector Style	Housing Color	Shield Termination
Amphenol ICC (Commercial Products) HSDWBRPPCB12B	Gold	Latch Lock	100 Ohms	Code B	25	-40 °C	105 ░C	Solder	Nickel	Thermoplastic	Male Pin Plug	Zinc Alloy	Through Hole Right Angle	Copper Alloy	1	Fakra HSD® Quadraxial	White	Solder
Amphenol ICC (Commercial Products) HSDWBRPPCB18B	Gold	Latch Lock	100 Ohms	Code B	25	-40 °C	105 ░C	Solder	Tin	Thermoplastic	Male Pin Plug	Zinc Alloy	Through Hole Right Angle	Copper Alloy	1	Fakra HSD® Quadraxial	White	Solder
Amphenol ICC (Commercial Products) HSDWBRPPCB13B	Gold	Latch Lock	100 Ohms	Code B	25	-40 °C	105 ░C	Solder	Tin	Thermoplastic	Male Pin Plug	Zinc Alloy	Through Hole Right Angle	Copper Alloy	1	Fakra HSD® Quadraxial	White	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100 Ohms Through Hole, Right Angle Solder
