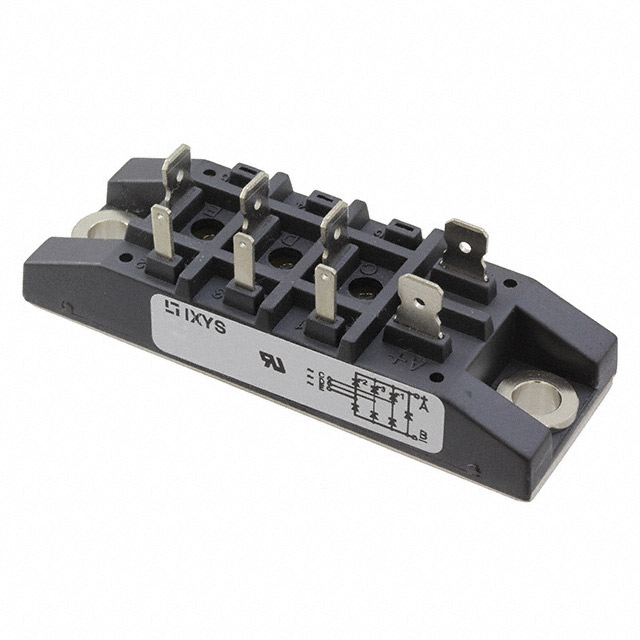

VVZF70-16IO7

Obsolete

IXYS

RECT BRIDGE 3PH 1600V FO-T-A

Search across all available documentation for this part.

Obsolete

IXYS

RECT BRIDGE 3PH 1600V FO-T-A

Technical Specifications

Parameters and characteristics for this part

Specification	VVZF70-16IO7

Current - Gate Trigger (Igt) (Max) [Max] [x]	100 mA
Current - Hold (Ih) (Max) [Max]	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	600 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	550 A
Current - On State (It (AV)) (Max)	70 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	3 Diodes
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	FO-T-A
Structure [custom]	Bridge
Structure [custom]	3-Phase
Structure [custom]	SCRs/Diodes
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V
Voltage - Off State	1.6 kV

Part	Voltage - Off State	Voltage - Gate Trigger (Vgt) (Max) [Max]	Mounting Type	Current - Gate Trigger (Igt) (Max) [Max] [x]	Package / Case	Number of SCRs, Diodes	Operating Temperature [Min]	Operating Temperature [Max]	Structure [custom]	Structure [custom]	Structure [custom]	Current - On State (It (AV)) (Max)	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Hold (Ih) (Max) [Max]
IXYS VVZF70-16IO7	1.6 kV	1.5 V	Chassis Mount	100 mA	FO-T-A	3 Diodes	-40 °C	125 ¯C	Bridge	3-Phase	SCRs/Diodes	70 A	550 A	600 A	200 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SCR Module 1.6 kV Bridge, 3-Phase - SCRs/Diodes Chassis Mount FO-T-A

Technical documentation and resources

No documents available
