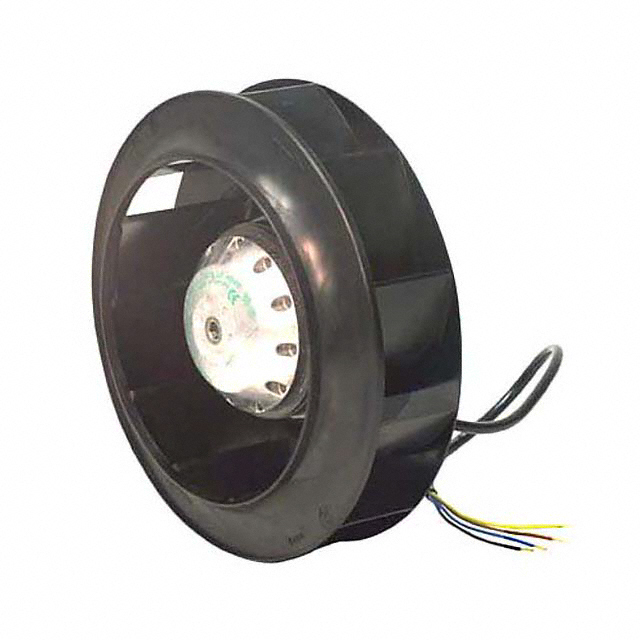

R2E220-AA40-23

Obsolete

ebm-papst Inc.

FANS &AMP; BLOWERS 220MM 230V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Compact Fans for AC, DC, and EC Catalog +1

R2E220-AA40-23

Obsolete

ebm-papst Inc.

FANS &AMP; BLOWERS 220MM 230V

Deep-Dive with AI

DocumentsDatasheet Compact Fans for AC, DC, and EC Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R2E220-AA40-23

Air Flow	530 CFM
Air Flow	14.84 mł/min
Approval Agency	CSA, CE, UL, CCC
Bearing Type	Ball
Fan Type	Motorized Impellers
Material - Blade	Polyamide (PA), Nylon
Noise	74 dB(A)
Power (Watts)	100 W
RPM	2550 RPM
Size / Dimension	Round
Size / Dimension [diameter]	220 mm
Termination	4 Wire Leads
Voltage - Rated	230 VAC
Weight	2.9 lbs
Weight	1.3 kg
Width [x]	71 mm

R2E220 Series

Part	Power (Watts)	Termination	Weight	Weight	Fan Type	Air Flow	Air Flow	Voltage - Rated	Ingress Protection	Material - Blade	Size / Dimension	Size / Dimension [diameter]	Approval Agency	Width [x]	Bearing Type	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature	Operating Temperature	Noise
ebm-papst Inc. R2E220-RA38-13	107 W	4 Wire Leads	2.9 lbs	1.3 kg	Motorized Impellers	541.5 CFM	15.16 mł/min	230 VAC	IP44	Fiberglass Reinforced Nylon Polyamide (PA)	Round	220 mm	UL	71 mm	Ball	2050 RPM	-25 °C	60 °C
ebm-papst Inc. R2E220-AA40-71	90 W	3 Wire Leads with Splice Terminals 4 Wire Leads with Splice Terminals			Motorized Impellers			230 VAC	IP44	Polyamide (PA6) Nylon 6 Fiberglass Reinforced	Round	221.4 mm	CCC CE CSA EAC UL	71 mm	Ball	2700 RPM	-25 °C	40 °C	40 °C	-25 °C	Capacitor Thermal Overload Protector (TOP)	400 mA
ebm-papst Inc. R2E220-RA44-14	108 W	4 Wire Leads	2.9 lbs	1.3 kg	Motorized Impellers	529.7 CFM	14.83 m³/min	115 VAC	IP44	Fiberglass Reinforced Nylon Polyamide (PA)	Round	220 mm	UL	71 mm	Ball	2100 RPM	-25 °C	60 °C					130 VAC	100 VAC
ebm-papst Inc. R2E220-RB06-01	135 W	4 Wire Leads with Splice Terminals			Motorized Impellers			230 VAC	IP44	Nylon Polyamide (PA)	Round	220 mm	CCC CE EAC		Ball	2650 RPM	-25 °C	75 ░C	75 °C	-25 °C	Capacitor Thermal Overload Protector (TOP)	600 mA
ebm-papst Inc. R2E220-AA40-80	90 W	4 Wire Leads with Splice Terminals	3.1 lbs	1.4 kg	Motorized Impellers	530 CFM	14.84 mł/min	230 VAC	IP44	Polyamide (PA6) Nylon 6	Round	220 mm	CCC CE CSA	71 mm	Ball	2700 RPM					Capacitor Thermal Overload Protector (TOP)	400 mA			55 °C	131 °F	74 dB(A)
ebm-papst Inc. R2E220-AA40-05	90 W	4 Wire Leads with Splice Terminals			Motorized Impellers			230 VAC	IP44	Polyamide (PA6) Nylon 6 Fiberglass Reinforced	Round	220 mm	CCC CE EAC	71 mm	Ball	2700 RPM	-25 °C	40 °C	40 °C	-25 °C	Capacitor Thermal Overload Protector (TOP)	400 mA
ebm-papst Inc. R2E220-AA40-23	100 W	4 Wire Leads	2.9 lbs	1.3 kg	Motorized Impellers	530 CFM	14.84 mł/min	230 VAC		Nylon Polyamide (PA)	Round	220 mm	CCC CE CSA UL	71 mm	Ball	2550 RPM											74 dB(A)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 115.92
		10	$ 103.35
		25	$ 98.73
		50	$ 95.36
		100	$ 92.11

Description

General part information

R2E220 Series

Fan Motorized Impellers 230VAC Round - 220mm Dia Ball 530.0 CFM (14.84m³/min) 4 Wire Leads
