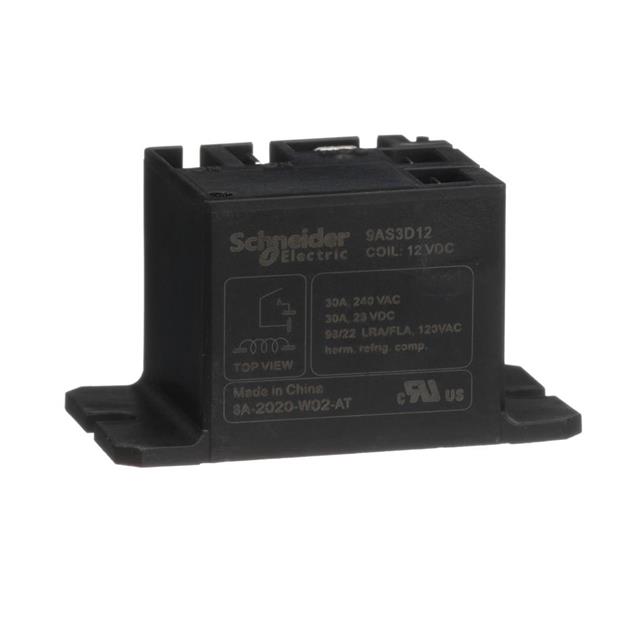

9AS3D12

Active

SQUARE D BY SCHNEIDER ELECTRIC

ELECTROMECHNICAL POWER RELAYS, S

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

ELECTROMECHNICAL POWER RELAYS, S

Technical Specifications

Parameters and characteristics for this part

Part	Must Release Voltage	Switching Voltage	Contact Form	Coil Current	Mounting Type	Operate Time	Coil Voltage	Seal Rating	Release Time	Coil Resistance	Approval Agency	Coil Type	Relay Type	Load - Max Switching	Load - Max Switching	Contact Rating (Current)	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Termination Style
SQUARE D BY SCHNEIDER ELECTRIC 9AS3D5	0.5 VDC	28 VDC 277 VAC	SPST-NO (1 Form A)	185.2 mA	Chassis Mount	20 ms	5 VDC	Sealed - Fully	10 ms	27 Ohms	UL	Non Latching	General Purpose	840 W	8310 VA	30 A	4 VDC	40 °C	-40 °C	Silver Alloy	Quick Connect - 0.187"/0.250"
SQUARE D BY SCHNEIDER ELECTRIC 9AS3D24	2.4 VDC	28 VDC 277 VAC	SPST-NO (1 Form A)	36.4 mA	Chassis Mount	20 ms	24 VDC	Sealed - Fully	10 ms	660 Ohms	UL	Non Latching	General Purpose	840 W	8310 VA	30 A	19.2 VDC	40 °C	-40 °C	Silver Alloy	Quick Connect - 0.187"/0.250"
SQUARE D BY SCHNEIDER ELECTRIC 9AS3D12	1.2 VDC	28 VDC 277 VAC	SPST-NO (1 Form A)	77.4 mA	Chassis Mount	20 ms	12 VDC	Sealed - Fully	10 ms	155 Ohms	UL	Non Latching	General Purpose	840 W	8310 VA	30 A	9.6 VDC	40 °C	-40 °C	Silver Alloy	Quick Connect - 0.187"/0.250"

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Chassis Mount
