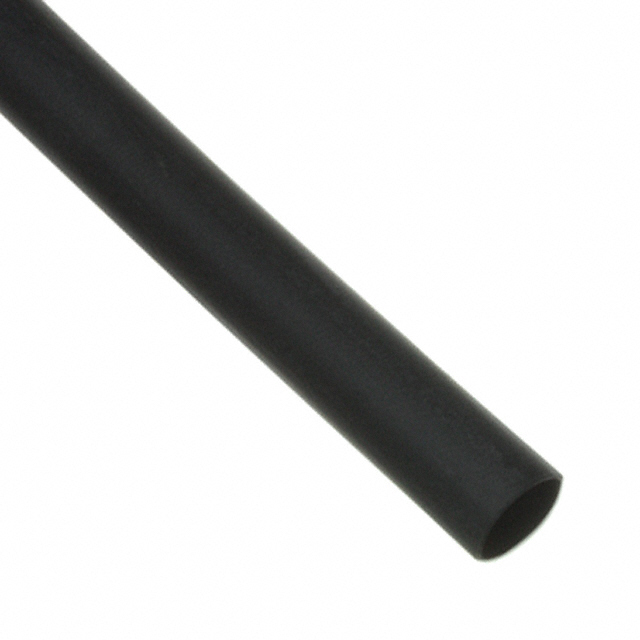

Q2-F3X-3/16-01-SS250FT
ActiveQualtek
HEATSHRINK POLY 3/16" BLK 250'
Deep-Dive with AI
Search across all available documentation for this part.
Q2-F3X-3/16-01-SS250FT
ActiveQualtek
HEATSHRINK POLY 3/16" BLK 250'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q2-F3X-3/16-01-SS250FT |
|---|---|
| Color | Black |
| Features | Corrosion Resistant, Flame Retardant |
| Inner Diameter - Recovered [diameter] | 1.52 mm |
| Inner Diameter - Recovered [diameter] | 0.06 in |
| Inner Diameter - Supplied [diameter] | 4.75 mm |
| Inner Diameter - Supplied [diameter] | 0.187 in |
| Length | 0.125 ', 0.062 ', 3000 " |
| Length | 38.1 mm, 19.05 mm, 76.2 m |
| Length | 1.5 ", 0.75 " |
| Length | Enter Number of Feet in Order Quantity |
| Material | Polyolefin (PO) |
| Operating Temperature [Max] | 135 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 0.61 mm |
| Recovered Wall Thickness | 0.024 in |
| Shelf Life | 60 Months |
| Shrink Temperature | 70 °C |
| Shrinkage Ratio [Max] | 3 |
| Shrinkage Ratio [Min] | 1 |
| Spool Size | 76.2 m |
| Spool Size | 250 ft |
| Storage/Refrigeration Temperature [Max] | 40 °C |
| Storage/Refrigeration Temperature [Min] | -10 °C, -50 °F |
| Type | Tubing, Flexible |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 0.03 | |
| 50 | $ 0.03 | |||
| 100 | $ 0.03 | |||
| 100 | $ 0.03 | |||
| 250 | $ 0.03 | |||
| 250 | $ 0.02 | |||
| 500 | $ 0.03 | |||
| 500 | $ 0.02 | |||
| 1250 | $ 0.03 | |||
| 1250 | $ 0.02 | |||
| Digi-Spool®, Continuous Spool | 1 | $ 0.74 | ||
| 5 | $ 0.67 | |||
| 10 | $ 0.51 | |||
| 25 | $ 0.49 | |||
| 50 | $ 0.46 | |||
| 100 | $ 0.43 | |||
| Spool | 1 | $ 37.21 | ||
| 5 | $ 31.33 | |||
| 10 | $ 28.40 | |||
| 25 | $ 26.44 | |||
| 50 | $ 25.46 | |||
| 100 | $ 24.87 | |||
Description
General part information
Q2-F3X-3/16 Series
Heat Shrink Tubing, Flexible 0.187" (4.75mm) 3 to 1 Black 250.0' (76.2m)
