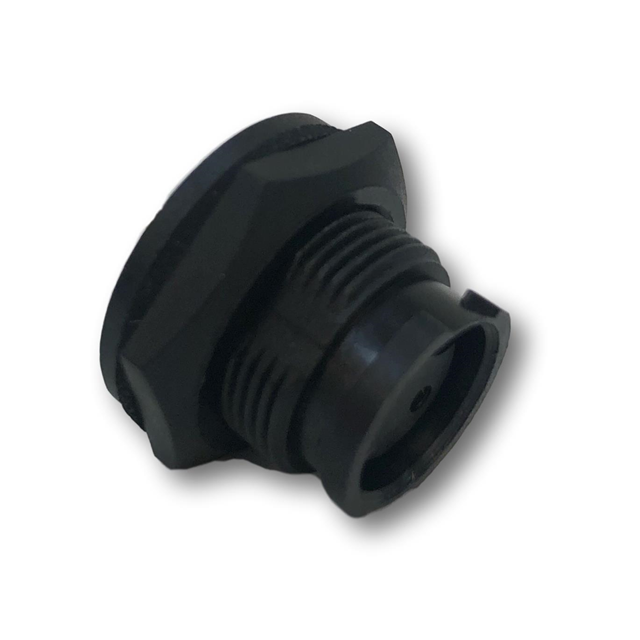

W7882-9SG-P-3ES

Active

Conxall/Switchcraft

CONN RCPT FMALE 9POS SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 9POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	W7882-9SG-P-3ES

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	9
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	300 VAC

Part	Mounting Feature	Fastening Type	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Positions	Contact Finish - Mating	Backshell Material, Plating	Orientation	Insert Material	Current Rating (Amps)	Contact Material	Connector Type	Color	Primary Material	Ingress Protection	Applications	Voltage Rating
Conxall/Switchcraft W7882-9SG-P-3ES	Bulkhead - Front Side Nut	Bayonet Lock	Unshielded	85 °C	-40 °C	UV Resistant	9	Gold	Thermoplastic	Keyed	Thermoplastic	Varies by Wire Gauge	Copper Alloy	Receptacle Female Sockets	Black	Plastic	IP66 IP67 IP68	Automotive Communication Systems Instrumentation	300 VAC
