SF0915-6200-04

Active

Amphenol SV Microwave

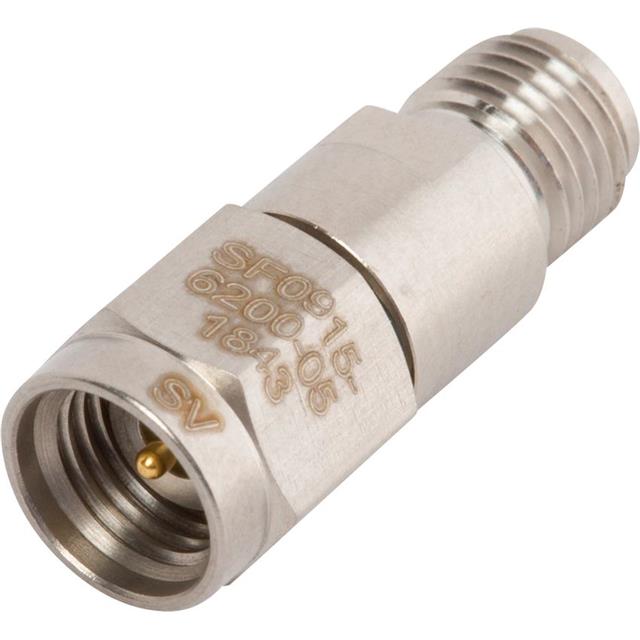

RF ATTENUATOR 4DB 50OHM SMA

Search across all available documentation for this part.

Active

Amphenol SV Microwave

RF ATTENUATOR 4DB 50OHM SMA

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Impedance	Frequency Range [Max]	Package / Case	Attenuation Value	Attenuation Value [custom]
Amphenol SV Microwave SF0915-6200-09	0.5 W	50 Ohms	40 GHz	SMA In-Line Module	9 dB
Amphenol SV Microwave SF0915-6200-08	0.5 W	50 Ohms	40 GHz	SMA In-Line Module	8 dB
Amphenol SV Microwave SF0915-6200-05	0.5 W	50 Ohms	40 GHz	SMA In-Line Module
Amphenol SV Microwave SF0915-6200-15	0.5 W	50 Ohms	40 GHz	SMA In-Line Module		15 dB
Amphenol SV Microwave SF0915-6200-06	0.5 W	50 Ohms	40 GHz	SMA In-Line Module		6 dB
Amphenol SV Microwave SF0915-6200-12	0.5 W	50 Ohms	40 GHz	SMA In-Line Module		12 dB
Amphenol SV Microwave SF0915-6200-04	0.5 W	50 Ohms	40 GHz	SMA In-Line Module	4 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 189.99

General part information

RF Attenuators 4dB 0 Hz ~ 40 GHz 50 Ohms 500mW SMA In-Line Module

Technical documentation and resources

No documents available
