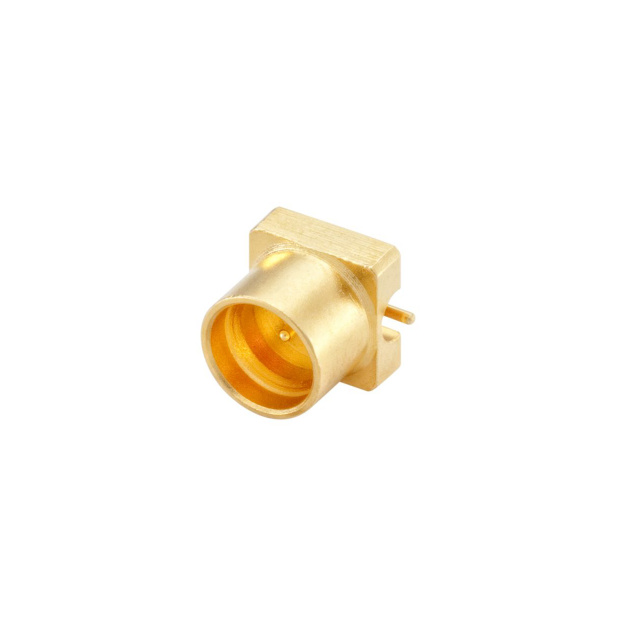

19S122-40ML5
ActiveRosenberger
RF SMP CONNECTOR, MALE, BOARD MOUNT, SURFACE MOUNT TERMINAL, PLUG, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
19S122-40ML5
ActiveRosenberger
RF SMP CONNECTOR, MALE, BOARD MOUNT, SURFACE MOUNT TERMINAL, PLUG, ROHS COMPLIANT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 19S122-40ML5 |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 40 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.25 | |
| 10 | $ 27.41 | |||
| 25 | $ 25.69 | |||
| 50 | $ 24.47 | |||
| 100 | $ 23.30 | |||
| 250 | $ 21.58 | |||
| 300 | $ 21.57 | |||
Description
General part information
19S122 Series
SMP Connector Plug, Male Pin 50 Ohms Surface Mount Solder
