Q-2C04T0003084i
ActiveAmphenol Custom Cable

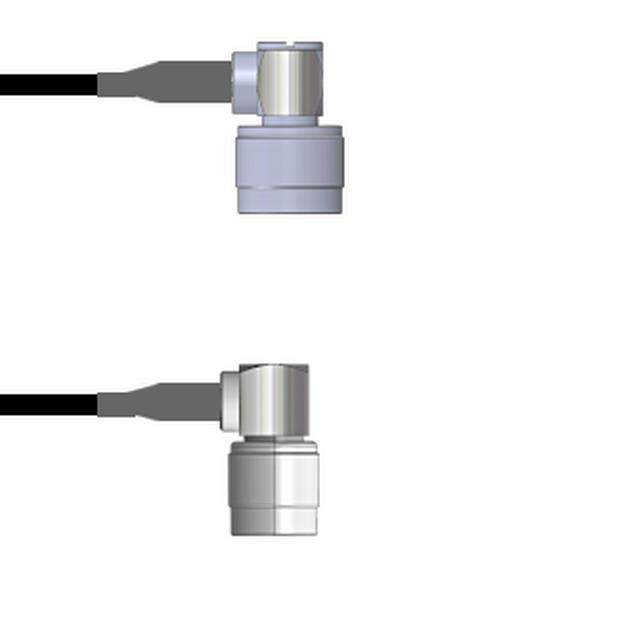

COAX CBL N-TYPE TO TNC 7'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2C04T0003084i
ActiveAmphenol Custom Cable
COAX CBL N-TYPE TO TNC 7'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2C04T0003084i |
|---|---|
| 1st Connector | N-Type Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 11 GHz |
| Length | 84 in |
| Length | 2.1 m |
| Length | 7 ft |
| Overall Impedance | 50 Ohms |
Q-2C04T0 Series
| Part | Cable Type | 2nd Connector Mounting Type | Overall Impedance | 2nd Connector | 2nd Contact Gender | Color | 1st Connector | Length | Length | Length | 1st Contact Gender | Features | Frequency - Max [Max] | 1st Connector Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | RG-316 | Free Hanging (In-Line) | 50 Ohms | TNC Plug Right Angle | Male | Copper | N-Type Plug Right Angle | 6.6 ft | 78.7 in | 2 m | Male | Shielded | 11 GHz | Free Hanging (In-Line) |
Amphenol Custom Cable | RG-174 | Free Hanging (In-Line) | 50 Ohms | TNC Plug Right Angle | Male | Black | N-Type Plug Right Angle | 9 " | 228.6 mm | Male | Shielded | 11 GHz | Free Hanging (In-Line) | |
Amphenol Custom Cable | RG-174 | Free Hanging (In-Line) | 50 Ohms | TNC Plug Right Angle | Male | Black | N-Type Plug Right Angle | 7 ft | 84 in | 2.1 m | Male | Shielded | 11 GHz | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 74.58 | |
| 25 | $ 73.14 | |||
| 50 | $ 71.70 | |||
| 100 | $ 70.26 | |||
| 250 | $ 68.83 | |||
Description
General part information
Q-2C04T0 Series
Cable Assembly Coaxial N-Type to TNC RG-174 84.0" (2.1m) 7.0'
