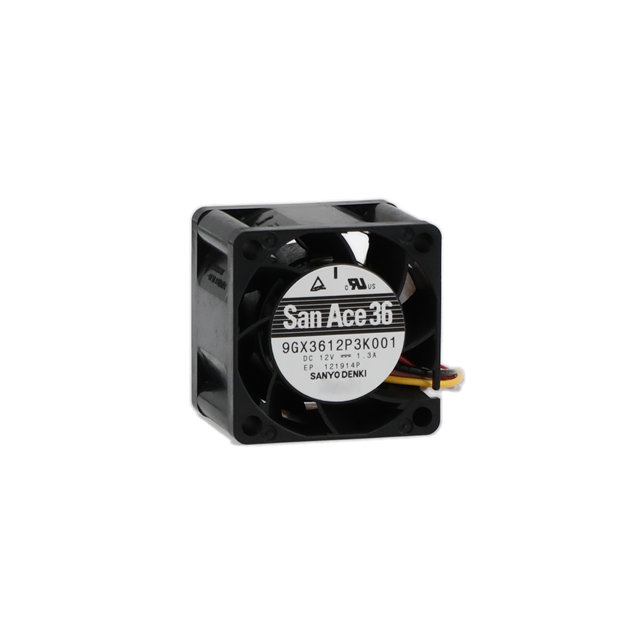

9GX3612P3K001
ActiveSanyo Denki America Inc.
FAN AXIAL 36X28MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
9GX3612P3K001
ActiveSanyo Denki America Inc.
FAN AXIAL 36X28MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9GX3612P3K001 |
|---|---|
| Air Flow | 24.4 CFM |
| Air Flow | 0.683 m³/min |
| Approval Agency | CSA, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 1.3 A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Lifetime @ Temp. | Varies Based on Temperature |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 15.6 W |
| RPM | 24000 RPM |
| Size / Dimension [x] | 36 mm |
| Size / Dimension [z] | 36 mm |
| Static Pressure | 3.365 in H2O |
| Static Pressure | 838.2 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 10.8 VDC |
| Weight | 0.102 lb |
| Weight | 46.27 g |
| Width [y] | 28 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 19.02 | |
| 10 | $ 17.37 | |||
| 25 | $ 16.71 | |||
| 50 | $ 15.61 | |||
| 140 | $ 14.40 | |||
| 280 | $ 14.18 | |||
| 560 | $ 14.07 | |||
Description
General part information
9GX3612 Series
Fan Tubeaxial 12VDC Square - 36mm L x 36mm H Ball 24.4 CFM (0.683m³/min) 4 Wire Leads
