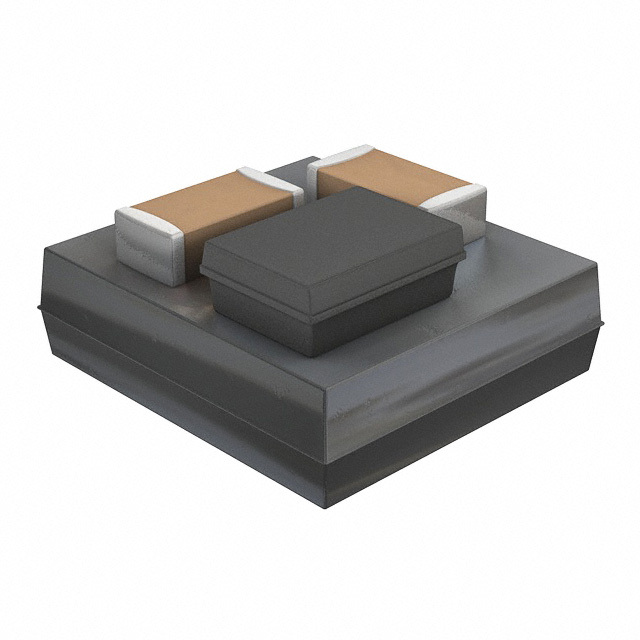

LXDC2UR33A-122

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 2W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 2W

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Number of Outputs	Voltage - Input (Min) [Min]	Applications	Voltage - Input (Max) [Max]	Type	Package / Case	Features	Voltage - Output 1	Mounting Type	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Efficiency
Murata Power Solutions Inc. LXDC2UR30A-143	85 °C	-40 °C	2 W	1	3.6 V	ITE (Commercial)	5.5 V	Non-Isolated PoL Module	9-SMD Module	UVLO	3 V	Surface Mount	600 mA	0.1 in	2.5 mm	1.1 mm	2.3 mm	0.04 in	0.09 "	93 %
Murata Power Solutions Inc. LXDC2UR18A-120	85 °C	-40 °C	2 W	1	2.7 V	ITE (Commercial)	5.5 V	Non-Isolated PoL Module	9-SMD Module	UVLO	1.8 V	Surface Mount	600 mA	0.1 in	2.5 mm	1.1 mm	2.3 mm	0.04 in	0.09 "	87 %
Murata Power Solutions Inc. LXDC2UR33A-122	85 °C	-40 °C	2 W	1	3.6 V	ITE (Commercial)	5.5 V	Non-Isolated PoL Module	9-SMD Module	UVLO	3.3 V	Surface Mount	600 mA	0.1 in	2.5 mm	1.1 mm	2.3 mm	0.04 in	0.09 "	90 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 600mA 3.6V - 5.5V Input
