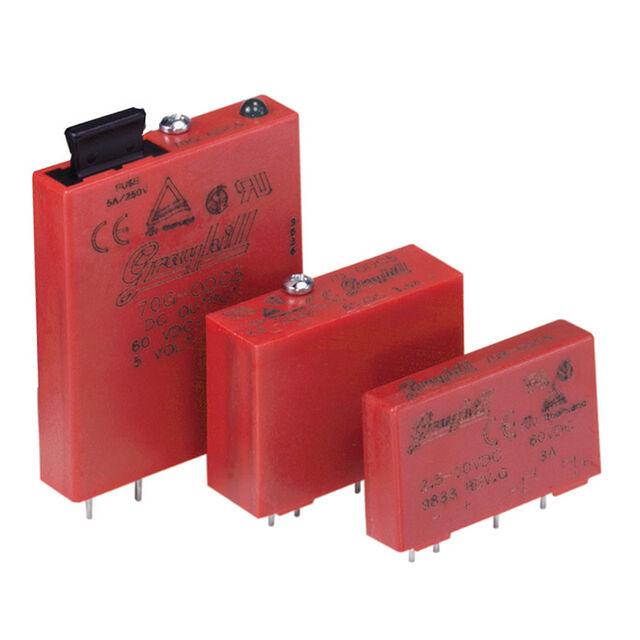

70-ODC5R

Active

Grayhill Inc.

DC OUTPUT MODULE 500MA

Search across all available documentation for this part.

Active

Grayhill Inc.

DC OUTPUT MODULE 500MA

Technical Specifications

Parameters and characteristics for this part

Part	Type	Voltage - Input	Turn On Time	Current - Output	Features	Turn Off Time	Color	Style	Voltage - Output [Min]	Voltage - Output [Max]	Current - Input
Grayhill Inc. 70-ODC24B	DC Output Module	24 V	0.075 ms	3.5 A	Hold Down Screw	0.5 ms	Red	Standard	3 V	60 VDC	9 mA
Grayhill Inc. 70-ODC24	DC Output Module	24 V	0.02 ms	3.5 A	Hold Down Screw	0.05 ms	Red	Standard	3 V	60 VDC	9 mA
Grayhill Inc. 70-ODC5R	DC Output Module	5 VDC	1 ms	500 mA	Hold Down Screw	1 ms	Red	Standard	0 VAC 0 VDC	100 VDC 120 VAC	10 mA
Grayhill Inc. 70-ODC5A	DC Output Module	5 VDC	0.075 ms	3.5 A	Hold Down Screw	0.75 ms	Red	Standard	4 V	200 V	18 mA
Grayhill Inc. 70-ODC24R	DC Output Module	24 V	1 ms	500 mA	Hold Down Screw	1 ms	Red	Standard	0 VAC 0 VDC	100 VDC 120 VAC	16 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DC Output Module Output Module 500mA 0 ~ 120VAC, 0 ~ 100VDC Output 5VDC Supply
