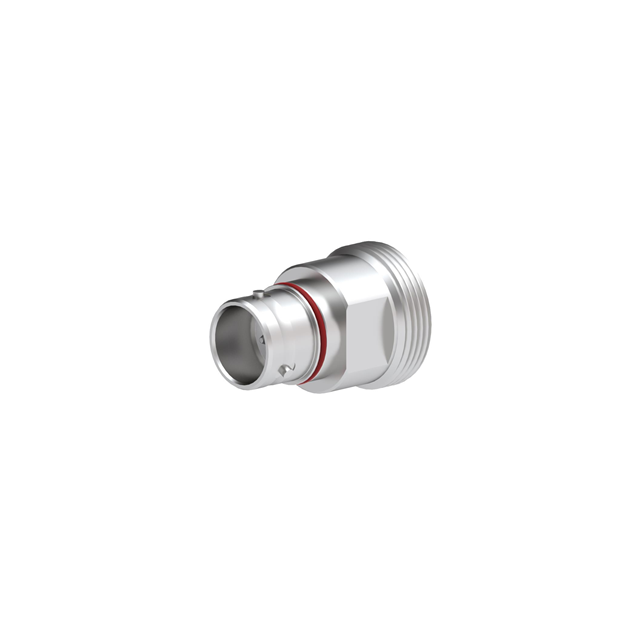

R191664000

Active

Radiall USA, Inc.

QLI MALE -7/16 FEMALE STRAIGHT A

Search across all available documentation for this part.

Active

Radiall USA, Inc.

QLI MALE -7/16 FEMALE STRAIGHT A

Technical Specifications

Parameters and characteristics for this part

Specification	R191664000

Adapter Series	QLI to 7/16
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Silver
Conversion Type	Between Series
Convert From (Adapter End)	QLI Plug, Male Pin
Convert To (Adapter End)	Female Socket, 7/16 Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Adapter Type	Conversion Type	Body Material	Convert From (Adapter End)	Frequency - Max [Max]	Body Finish	Convert To (Adapter End)	Impedance	Dielectric Material	Style	Adapter Series	Mounting Type	Center Contact Material	Fastening Type	Center Contact Plating
Radiall USA, Inc. R191664000	Plug to Jack	Between Series	Brass	QLI Plug Male Pin	6000 MHz	White Bronze	7/16 Jack Female Socket	50 Ohms	Polytetrafluoroethylene (PTFE)	Straight	QLI to 7/16	Free Hanging (In-Line)	Bronze	Bayonet Lock Threaded	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 34.35

General part information

Adapter Coaxial Connector QLI Plug, Male Pin To 7/16 Jack, Female Socket 50 Ohms
