CI1504M1HR0-NH

Active

Cvilux USA

4 POS 1.50MM(.059) WIRE TO BOARD

Search across all available documentation for this part.

Active

Cvilux USA

4 POS 1.50MM(.059) WIRE TO BOARD

Technical Specifications

Parameters and characteristics for this part

Specification	CI1504M1HR0-NH

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	120 µin
Contact Finish Thickness - Mating	3.05 Ám
Contact Finish Thickness - Post	120 Áin
Contact Finish Thickness - Post	3.05 Ám
Contact Length - Mating	0.1 in
Contact Length - Mating	2.54 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.148 in
Insulation Height	3.75 mm
Insulation Material	Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 VAC

Part	Contact Finish - Post	Number of Positions Loaded	Number of Positions	Shrouding	Insulation Color	Style	Contact Shape	Insulation Material	Contact Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Termination	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Rows	Material Flammability Rating	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Mounting Type	Fastening Type	Contact Length - Mating	Contact Length - Mating
Cvilux USA CI1504M1VR0-NH	Tin	All	4	Shrouded - 4 Wall	Natural	Board to Cable/Wire	Square	Plastic Halogen Free	Brass	Pick and Place Solder Retention	-25 °C	85 °C	120 Áin	3.05 Ám	50 VAC	Solder	0.199 in	5.05 mm	0.093 "	2.36 mm	1	UL94 V-0	Header	120 µin	3.05 Ám	Male Pin	Surface Mount	Detent Lock
Cvilux USA CI1504M1HR0-NH	Tin	All	4	Shrouded - 4 Wall	Natural	Board to Cable/Wire	Square	Polyamide (PA46) Nylon 4/6	Brass	Solder Retention	-25 °C	85 °C	120 Áin	3.05 Ám	50 VAC	Solder	0.148 in	3.75 mm			1	UL94 V-0	Header	120 µin	3.05 Ám	Male Pin	Surface Mount Right Angle	Detent Lock	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

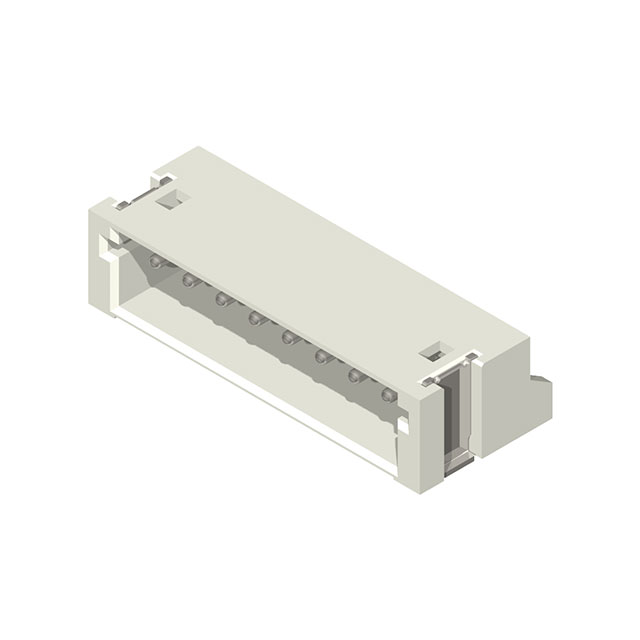

Connector Header Surface Mount, Right Angle 4 position 0.059" (1.50mm)
