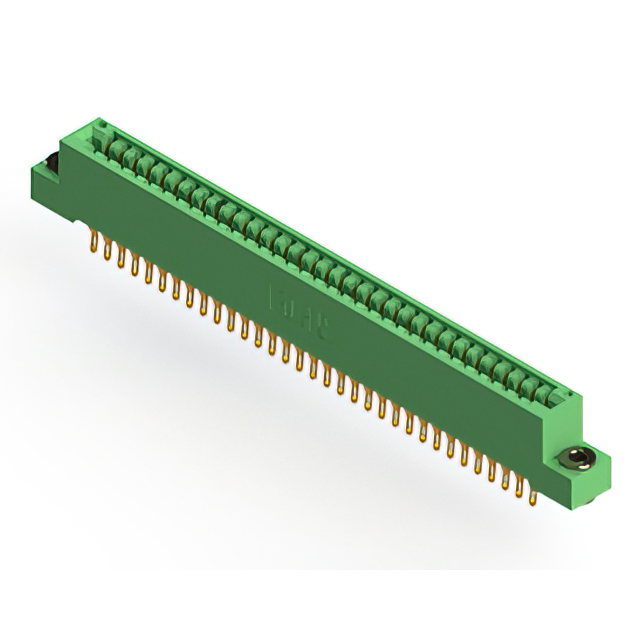

846-066-555-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 66POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-066-555-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 66POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-066-555-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 66 |
| Number of Positions/Bay/Row [custom] | 33 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
846-066 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Termination | Pitch [x] | Pitch [x] | Termination Rows | Card Type | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Color | Contact Type | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Mounting Type | Number of Positions/Bay/Row [custom] | Contact Finish | Read Out | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Solder | 0.125 in | 3.18 mm | 2 | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Green | Cantilever | 66 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | Copper Alloy | Through Hole | 33 | Gold | Dual | |
EDAC Inc. | 10 Áin | 0.25 Ám | Solder | 0.125 in | 3.18 mm | 2 | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | M3 Threaded Insert Top Mount Opening | Green | Cantilever | 66 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | Copper Alloy | Board Edge Straddle Mount | 33 | Gold | Dual | Card Extender | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Solder Eyelet(s) | 0.125 in | 3.18 mm | 2 | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 4-40 Threaded Insert Top Mount Opening | Green | Cantilever | 66 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | Copper Alloy | Through Hole | 33 | Gold | Dual | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Solder | 0.125 in | 3.18 mm | 2 | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Green | Cantilever | 66 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | Copper Alloy | Through Hole | 33 | Gold | Dual | |
EDAC Inc. | 10 Áin | 0.25 Ám | Solder Eyelet(s) | 0.125 in | 3.18 mm | 2 | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Green | Cantilever | 66 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | Copper Alloy | Board Edge Straddle Mount | 33 | Gold | Dual | Card Extender |
EDAC Inc. | 10 Áin | 0.25 Ám | Solder | 0.125 in | 3.18 mm | 2 | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 4-40 Threaded Insert Top Mount Opening | Green | Cantilever | 66 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | Copper Alloy | Board Edge Straddle Mount | 33 | Gold | Dual | Card Extender | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Wire Wrap | 0.125 in | 3.18 mm | 2 | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Green | Cantilever | 66 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | Copper Alloy | Through Hole | 33 | Gold | Dual | |
EDAC Inc. | 10 Áin | 0.25 Ám | Solder | 0.125 in | 3.18 mm | 2 | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Green | Cantilever | 66 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | Copper Alloy | Through Hole | 33 | Gold | Dual | |
EDAC Inc. | 10 Áin | 0.25 Ám | Solder Eyelet(s) | 0.125 in | 3.18 mm | 2 | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Green | Cantilever | 66 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | Copper Alloy | Through Hole | 33 | Gold | Dual | |
EDAC Inc. | 10 Áin | 0.25 Ám | Solder | 0.125 in | 3.18 mm | 2 | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 4-40 Threaded Insert Top Mount Opening | Green | Cantilever | 66 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | Copper Alloy | Board Edge Straddle Mount | 33 | Gold | Dual | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 75.22 | |
Description
General part information
846-066 Series
66 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
