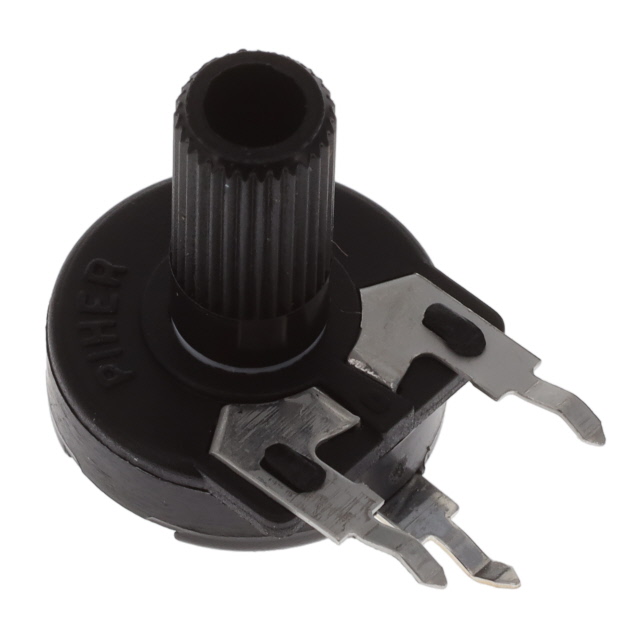

PT15WH06-503A2020-1-NE-S
ActiveAmphenol Piher Sensing Systems
TRIMMER 50KOHM 0.25W PC PIN SIDE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PT15WH06-503A2020-1-NE-S |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance | 50 kOhms |
| Resistive Material | Carbon |
| Size / Dimension [diameter] | 15 mm |
| Size / Dimension [diameter] | 0.591 in |
| Temperature Coefficient | 300 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.56 | |
| 10 | $ 1.25 | |||
| 25 | $ 1.15 | |||
| 50 | $ 1.07 | |||
| 100 | $ 1.00 | |||
| 250 | $ 0.92 | |||
| 500 | $ 0.86 | |||
| 1000 | $ 0.80 | |||
Description
General part information
PT15WH06 Series
50 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
