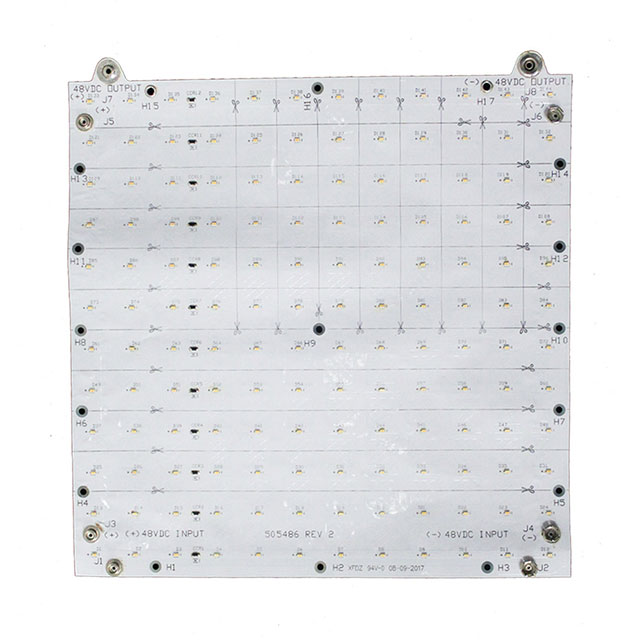

VFTH12N06S27K

Obsolete

Visual Communications Company - VCC

LED MOD VENTOFLEX WHT SQ 2700K

Search across all available documentation for this part.

Obsolete

Visual Communications Company - VCC

LED MOD VENTOFLEX WHT SQ 2700K

Technical Specifications

Parameters and characteristics for this part

Specification	VFTH12N06S27K

CCT (K)	2700 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	90
Lens Type	Flat
Lumens/Watt @ Current - Test	100 lm/W
Luminous Flux @ Current/Temperature	576 lm
Size / Dimension [x]	304.8 mm
Size / Dimension [y]	304.8 mm
Type	LED Module
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	48 V

Part	Viewing Angle	Configuration	Type	Color	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	CCT (K)	CRI (Color Rendering Index)	Lens Type	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test
Visual Communications Company - VCC VFTH12N09S40K	140 °	Square	LED Module	Neutral White	304.8 mm	304.8 mm	48 V	4000 K	90	Flat	828 lm	96 lm/W
Visual Communications Company - VCC VFTH12N06S27K	140 °	Square	LED Module	Warm White	304.8 mm	304.8 mm	48 V	2700 K	90	Flat	576 lm	100 lm/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module VentoFlex White, Warm Square

Technical documentation and resources

No documents available
