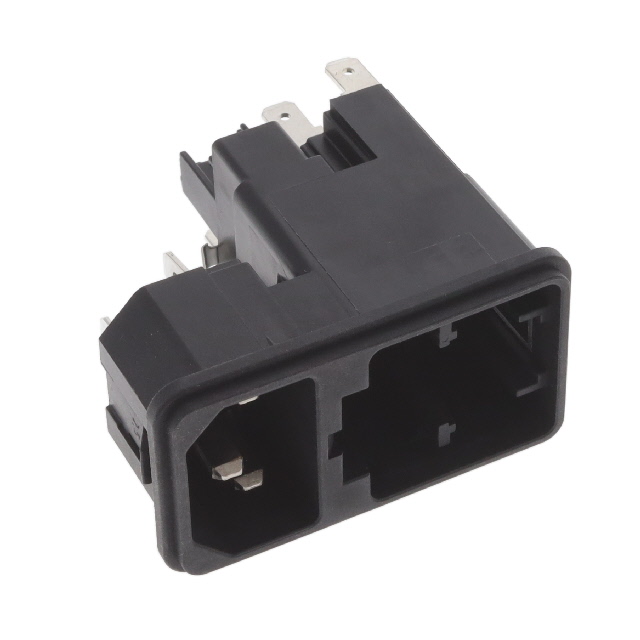

KE16.5100.109
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KE16.5100.109
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KE16.5100.109 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, ENEC, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A |
| Features | Voltage Selector |
| Filter Type | Unfiltered - Commercial |
| Fuse Holder, Drawer | Drawer Sold Separate |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 27.5 mm |
| Panel Cutout Dimensions [y] | 52.5 mm |
| Panel Thickness [x] | 2.5 mm |
| Panel Thickness [x] | 0.098 in |
| Termination | 0.189 ", 4.8 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.18 | |
| 50 | $ 16.59 | |||
| 100 | $ 13.90 | |||
Description
General part information
KE16.5100 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
