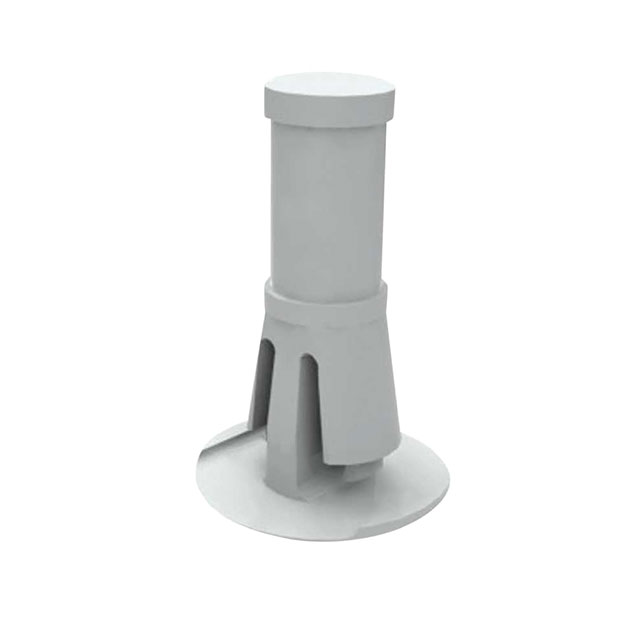

RLCBSRS-8-01
ActiveEssentra Access Solutions
BRD SPT REST MNT SNAP LOCK 1/2"
Deep-Dive with AI
Search across all available documentation for this part.
RLCBSRS-8-01
ActiveEssentra Access Solutions
BRD SPT REST MNT SNAP LOCK 1/2"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RLCBSRS-8-01 |
|---|---|
| Between Board Height | 0.5 in |
| Between Board Height | 12.7 mm |
| Between Board Height | 0.5 in |
| Features | Locking, Reverse Mounting |
| Holding Type | Resting Mount |
| Length - Overall [x] | 15.8 mm |
| Length - Overall [x] | 0.622 in |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.187 in |
| Mounting Hole Diameter [diameter] | 4.75 mm |
| Mounting Hole Diameter [diameter] | 3 in |
| Mounting Panel Thickness [Max] | 0.063 in |
| Mounting Panel Thickness [Max] | 1.6 mm |
| Mounting Panel Thickness [Min] | 0.059 in |
| Mounting Panel Thickness [Min] | 1.5 mm |
| Mounting Type | Snap Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.18 | |
| 5 | $ 0.15 | |||
| 10 | $ 0.14 | |||
| 25 | $ 0.12 | |||
| 50 | $ 0.11 | |||
| 100 | $ 0.11 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.09 | |||
Description
General part information
RLCBSRS Series
Board Support Resting Mount / Snap Lock Nylon 0.500" (12.70mm) 1/2"
Documents
Technical documentation and resources
No documents available
