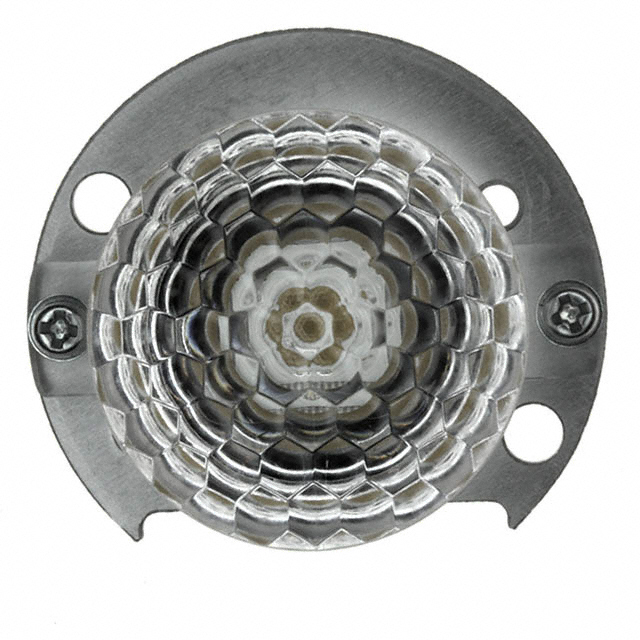

SIN3141N

Obsolete

Stanley Electric Co

LED MOD 3W-TYPE WHT ROUND 5000K

Search across all available documentation for this part.

Obsolete

Stanley Electric Co

LED MOD 3W-TYPE WHT ROUND 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	SIN3141N

CCT (K)	5000 K
Color	Cool, White
Configuration	Round
Current - Max [Max]	150 mA
Current - Test	150 mA
Height [z]	20 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	29 lm/W
Luminous Flux @ Current/Temperature	90 lm
Size / Dimension [diameter]	25 mm
Type	LED Module
Viewing Angle	45 °
Voltage - Forward (Vf) (Typ)	21 V

Part	Type	Lumens/Watt @ Current - Test	Viewing Angle	Luminous Flux @ Current/Temperature	Height [z]	Size / Dimension [diameter]	Lens Type	Current - Test	CCT (K)	Current - Max [Max]	Configuration	Voltage - Forward (Vf) (Typ)	Color
Stanley Electric Co SIN3141N	LED Module	29 lm/W	45 °	90 lm	20 mm	25 mm	Flat	150 mA	5000 K	150 mA	Round	21 V	Cool White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module 3W-Type White, Cool Round
