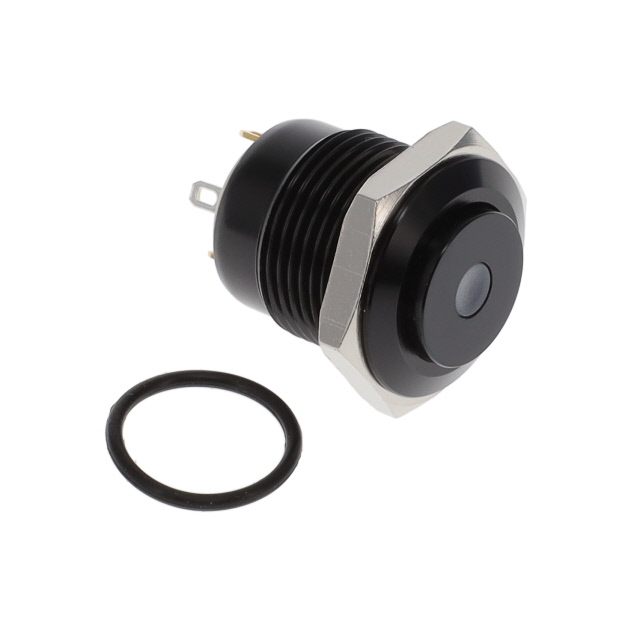

PV6H24011-231

Active

E-Switch

SWITCH PUSHBUTTON SPST 2A 48V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSHBUTTON SPST 2A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	PV6H24011-231

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	2 A
Electrical Life	200000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.8 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	48 V

Part	Ingress Protection	Termination Style	Color - Actuator/Cap	Current Rating (Amps)	Type	Mechanical Life	Panel Cutout Dimensions [diameter]	Actuator Marking	Electrical Life	Mounting Type	Illumination Type, Color	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Voltage (Nominal)	Actuator Type	Switch Function	Voltage Rating - DC
E-Switch PV6H24011-231	IP65 - Dust Tight Water Resistant	Solder Lug	Black	2 A	Anti-Vandal Illuminated	1000000 Cycles	16 mm	No Marking	200000 Cycles	Panel Mount Front	Green LED	SPST-NO	-20 C	70 °C	2.8 VDC	Button Round	Off-Mom	48 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front
