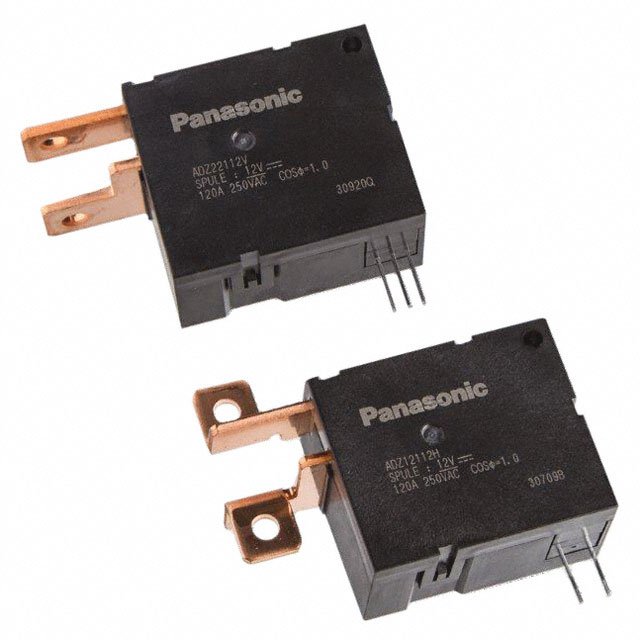

ADZ12124V

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 120A 24V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 120A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Must Operate Voltage	Relay Type	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Release Time	Approval Agency	Switching Voltage [Max]	Contact Material	Termination Style	Mounting Type	Operate Time	Coil Current	Coil Type	Load - Max Switching	Coil Voltage	Contact Form
Panasonic Electric Works ADZ12105V	3.5 VDC	General Purpose	120 A	85 °C	-40 °C	17.9 Ohms	20 ms	VDE	276 VAC	Silver Tin Oxide (AgSnO)	Solder Lug	Chassis Mount	20 ms	280 mA	Latching Single Coil	33120 VA	5 VDC	SPST-NO (1 Form A)
Panasonic Electric Works ADZ12124V	16.8 VDC	General Purpose	120 A	85 °C	-40 °C	411.4 Ohms	20 ms	VDE	276 VAC	Silver Tin Oxide (AgSnO)	Solder Lug	Chassis Mount	20 ms	58.3 mA	Latching Single Coil	33120 VA	24 VDC	SPST-NO (1 Form A)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Chassis Mount
