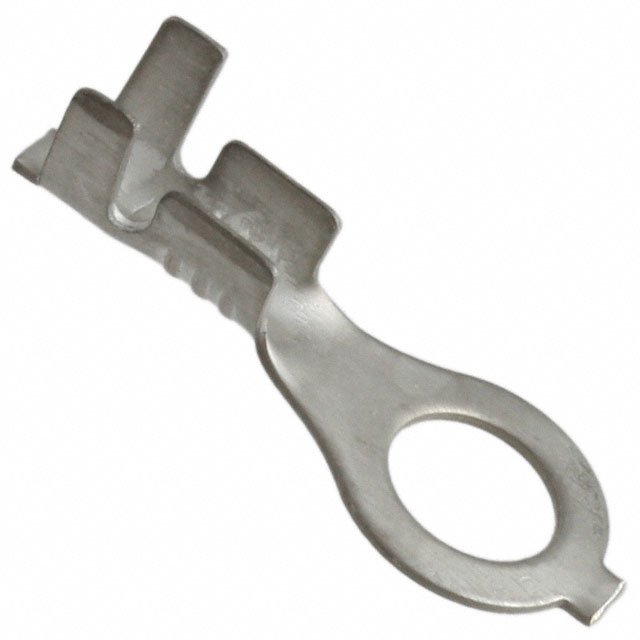

0357501210

Obsolete

Molex

CONN RING CIRC 14-18AWG #8 CRIMP

Search across all available documentation for this part.

Obsolete

Molex

CONN RING CIRC 14-18AWG #8 CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Length - Overall	Length - Overall	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Insulation	Termination	Contact Finish	Terminal Type	Thickness	Thickness	Mounting Type	Stud/Tab Size	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Thickness [custom]	Thickness [custom]
Molex 0357501910	0.949 in	24.1 mm	Brass	10 AWG	16 AWG	Non-Insulated	Crimp	Tin	Circular	0.031 in	0.79 mm	Free Hanging (In-Line)
Molex 0357500400				16 AWG	20 AWG	Non-Insulated	Crimp	Tin	Circular			Free Hanging (In-Line)	5 Stud	0.138 in	3.51 mm
Molex 0357500910			Brass	14 AWG	18 AWG	Non-Insulated	Crimp	Tin	Circular			Free Hanging (In-Line)				0.653 "	16.59 mm	0.016 in	0.41 mm
Molex 0357501210	0.598 in	15.2 mm	Brass	14 AWG	18 AWG	Non-Insulated	Crimp	Tin	Circular	0.02 in	0.51 mm	Free Hanging (In-Line)	8 Stud

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Ring Terminal Connector 8 Stud Circular 14-18 AWG Crimp
