031-242-RFX

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	031-242-RFX

Body Finish	Nickel
Body Material	Brass
Cable Group	179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms

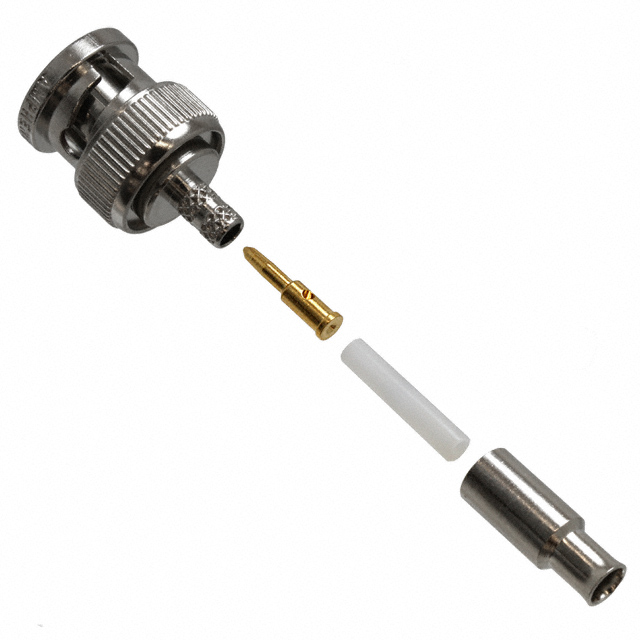

Includes	1 Connector, 1 Sleeve, 1 Ferrule, 1 Contact
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Mounting Type	Fastening Type	Voltage Rating	Insertion Loss	Impedance	Center Contact Plating	Body Material	Contact Termination	Center Contact Material	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Shield Termination	Housing Color	Mating Cycles	Frequency - Max [Max]	Cable Group	Dielectric Material	Connector Type	Connector Style	Includes
Amphenol RF 031-242-RFX	Free Hanging (In-Line)	Bayonet Lock	500 V	0.2 dB	50 Ohms	Gold	Brass	Crimp	Brass	1	-65 ░C	165 °C	Nickel	Crimp	Silver	500	4 GHz	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	Polyoxymethylene (POM) Acetal	Male Pin Plug	BNC	1 Connector 1 Contact 1 Ferrule 1 Sleeve

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
