MLDX-015A-DX01-N

Active

Amphenol All Sensors Corporation

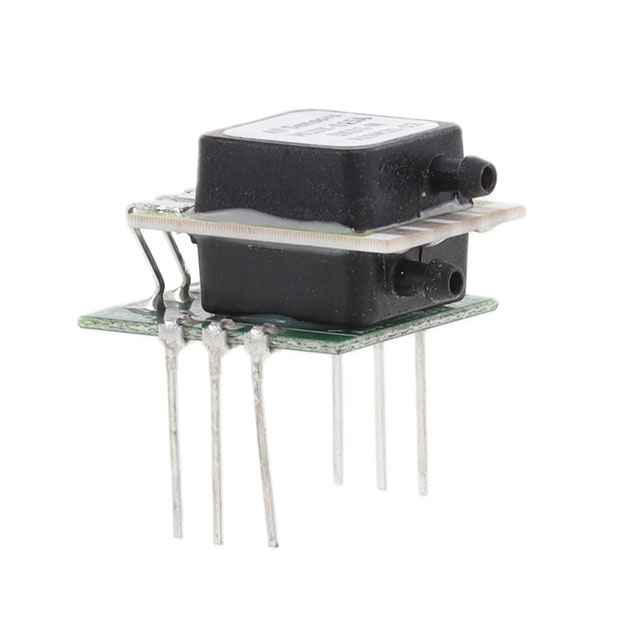

SENSOR 15PSIA 0.09" .075V 6DIP

Deep-Dive with AI

Search across all available documentation for this part.

MLDX-015A-DX01-N

Active

Amphenol All Sensors Corporation

SENSOR 15PSIA 0.09" .075V 6DIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MLDX-015A-DX01-N

Accuracy	0.5 %
Features	Temperature Compensated
Maximum Pressure [Max]	30 PSI
Maximum Pressure [Max]	206.84 kPa
Mounting Type	Through Hole
Operating Pressure [custom]	15 PSI
Operating Pressure [custom]	103.42 kPa
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output [Max]	75 mV
Output [Min]	0 mV
Output Type	Analog Voltage
Package / Case	Same Side, Dual Ports, 6-DIP
Package / Case	0.6 in
Package / Case	15.24 mm
Port Size	Dual, Tube, Male
Port Size	2.24 mm
Port Size	0.09 "
Port Style	Barbed
Supplier Device Package	6-DIP
Termination Style	PC Pin
Voltage - Supply	20 V

MLDX Series

Part	Pressure Type	Port Size	Port Size	Port Size	Output Type	Supplier Device Package	Package / Case	Package / Case	Package / Case	Features	Maximum Pressure [Min]	Maximum Pressure [Max]	Maximum Pressure [Max]	Maximum Pressure [Min]	Operating Pressure	Operating Pressure	Termination Style	Mounting Type	Accuracy	Operating Temperature [Max]	Operating Temperature [Min]	Output [Max]	Port Style	Voltage - Supply	Maximum Pressure	Maximum Pressure	Operating Pressure [custom]	Operating Pressure [custom]
Amphenol All Sensors Corporation MLDX-100D-DX01-P	Differential	Dual Male Tube	2.24 mm	0.09 "	Analog Voltage	6-DIP	6-DIP Dual Ports Same Side	0.6 in	15.24 mm	Temperature Compensated	-120 PSI	827.37 kPa	120 PSI	-827.37 kPa	100 PSI	689.48 kPa	PC Pin	Through Hole	0.5 %	85 °C	-40 °C	83 mV	Barbed	20 V
Amphenol All Sensors Corporation MLDX-005D-DX01-P	Differential	Dual Male Tube	2.24 mm	0.09 "	Analog Voltage	6-DIP	6-DIP Dual Ports Same Side	0.6 in	15.24 mm	Temperature Compensated					5 PSI	34.47 kPa	PC Pin	Through Hole	0.5 %	85 °C	-40 °C	50 mV	Barbed	20 V	68.95 kPa	10 PSI
Amphenol All Sensors Corporation MLDX-001D-DX01-N	Differential	Dual Male Tube	2.24 mm	0.09 "	Analog Voltage	6-DIP	6-DIP Dual Ports Same Side	0.6 in	15.24 mm	Temperature Compensated							PC Pin	Through Hole	0.3 %	85 °C	-40 °C	15 mV	Barbed	20 V	48.26 kPa	7 PSI
Amphenol All Sensors Corporation MLDX-L10D-DX01-N	Differential	Dual Male Tube	2.24 mm	0.09 "	Analog Voltage	6-DIP	6-DIP Dual Ports Same Side	0.6 in	15.24 mm	Temperature Compensated					10 PSI	68.95 kPa	PC Pin	Through Hole	0.3 %	85 °C	-40 °C	20.8 mV	Barbed	20 V	49.83 kPa	7.23 PSI
Amphenol All Sensors Corporation MLDX-015A-DX01-N		Dual Male Tube	2.24 mm	0.09 "	Analog Voltage	6-DIP	6-DIP Dual Ports Same Side	0.6 in	15.24 mm	Temperature Compensated		206.84 kPa	30 PSI				PC Pin	Through Hole	0.5 %	85 °C	-40 °C	75 mV	Barbed	20 V			15 PSI	103.42 kPa

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 82.37
		5	$ 69.48
		10	$ 64.57
		25	$ 58.61
		40	$ 55.78
		80	$ 51.84

Description

General part information

MLDX Series

Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.09" (2.24mm) Tube, Dual 0 mV ~ 75 mV 6-DIP (0.600", 15.24mm), Dual Ports, Same Side
