SML-H1505SIUGUBCTR

Active

Lumex Opto/Components Inc.

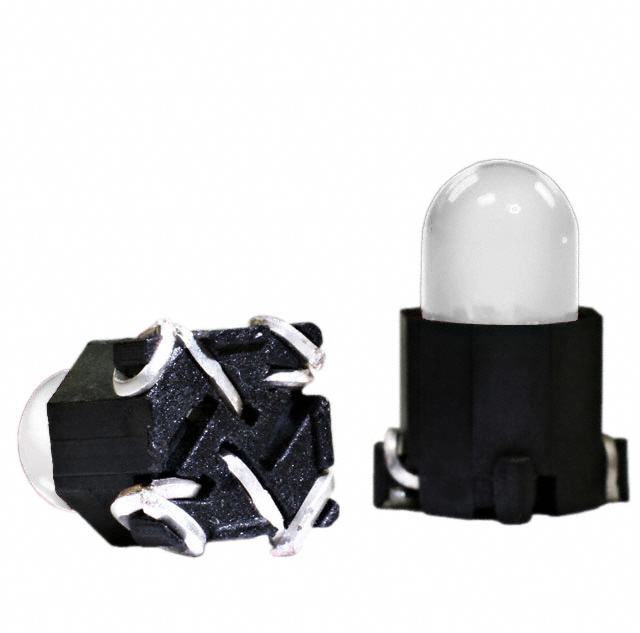

LED RGB CLEAR SMD DOME LED SMD

Deep-Dive with AI

Search across all available documentation for this part.

SML-H1505SIUGUBCTR

Active

Lumex Opto/Components Inc.

LED RGB CLEAR SMD DOME LED SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SML-H1505SIUGUBCTR

Color	Red, Green, Blue
Configuration	Common Cathode
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Height (Max) [Max] [z]	11 mm
Lens Color	Colorless
Lens Size [diameter]	4.9 mm
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating [custom]	2200 mcd
Millicandela Rating [custom]	1100 mcd
Millicandela Rating [custom]	600 mcd
Mounting Type	Surface Mount
Package / Case	2-SMD, 1505
Size / Dimension [x]	6.51 mm
Size / Dimension [y]	6.51 mm
Supplier Device Package	Surface Mounted Dome LED
Viewing Angle	70 °
Voltage - Forward (Vf) (Typ)	2.2 V, 3.4 V, 3.4 V
Wavelength - Peak [custom]	520 nm
Wavelength - Peak [custom]	465 nm
Wavelength - Peak [custom]	635 nm

SML-H1505 Series

Part	Configuration	Height (Max) [Max] [z]	Lens Color	Lens Size [diameter]	Color	Package / Case	Supplier Device Package	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Lens Style	Wavelength - Peak	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Mounting Type	Current - Test	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Viewing Angle [custom]
Lumex Opto/Components Inc. SML-H1505SIC-TR	Standard	11 mm	Colorless	4.9 mm	Red	2-SMD 1505	Surface Mounted Dome LED	Clear	6.51 mm	6.51 mm	60 °	Round with Domed Top	635 nm	700 mcd	2 V	Surface Mount	20 mA
Lumex Opto/Components Inc. SML-H1505SIUGUBWTR	Common Cathode	11 mm	White	4.9 mm	Blue Green Red	2-SMD 1505	Surface Mounted Dome LED	Diffused	6.51 mm	6.51 mm	60 °	Round with Domed Top			2.2 V 3.4 V 3.4 V	Surface Mount		2200 mcd	1100 mcd	600 mcd	520 nm	465 nm	635 nm	20 mA	20 mA	20 mA
Lumex Opto/Components Inc. SML-H1505SUGC-TR	Standard	11 mm	Colorless	4.9 mm	Green	2-SMD 1505	Surface Mounted Dome LED	Clear	6.51 mm	6.51 mm	68 °	Round with Domed Top	575 nm	200 mcd	2 V	Surface Mount	20 mA
Lumex Opto/Components Inc. SML-H1505UWC-TR	Standard	11 mm	Colorless	4.9 mm	White	2-SMD 1505	Surface Mounted Dome LED	Clear	6.51 mm	6.51 mm	30 °	Round with Domed Top		14000 mcd	3.3 V	Surface Mount	20 mA
Lumex Opto/Components Inc. SML-H1505USBC-TR	Standard	11 mm	Colorless	4.9 mm	Blue	2-SMD 1505	Surface Mounted Dome LED	Clear	6.51 mm	6.51 mm		Round with Domed Top		2500 mcd	3.3 V	Surface Mount	20 mA										40 °
Lumex Opto/Components Inc. SML-H1505SIUGUBCTR	Common Cathode	11 mm	Colorless	4.9 mm	Blue Green Red	2-SMD 1505	Surface Mounted Dome LED	Clear	6.51 mm	6.51 mm	70 °	Round with Domed Top			2.2 V 3.4 V 3.4 V	Surface Mount		2200 mcd	1100 mcd	600 mcd	520 nm	465 nm	635 nm	20 mA	20 mA	20 mA
Lumex Opto/Components Inc. SML-H1505UPGD-TR	Independent	11 mm	Green	4.9 mm	Green	2-SMD 1505	Surface Mounted Dome LED	Diffused	6.51 mm	6.51 mm	60 °	Round with Domed Top	520 nm	2200 mcd	3.3 V	Surface Mount	20 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SML-H1505 Series

Red, Green, Blue (RGB) LED Indication - Discrete 2.2V Red, 3.4V Green, 3.4V Blue 2-SMD, 1505
