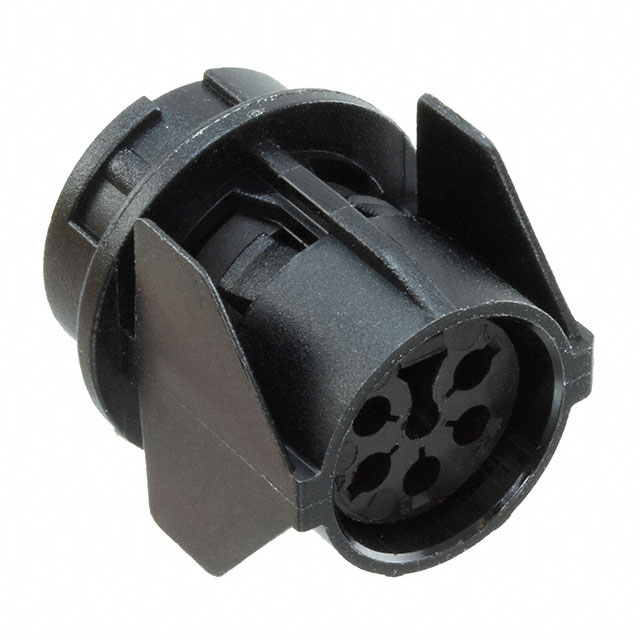

T3376500U

Active

Amphenol Tuchel Industrial

CONN RCP HSG ML 5P PNL MT SNAPIN

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCP HSG ML 5P PNL MT SNAPIN

Technical Specifications

Parameters and characteristics for this part

Specification	T3376500U

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Plastic
Shell Size - Insert	M16-5
Shielding	Unshielded
Type	For Male Pins

Part	Type	Housing Color	Fastening Type	Mounting Type	Contact Type	Insert Material	Ingress Protection	Connector Type	Material Flammability Rating	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Note	Shell Material	Orientation	Contact Shape	Contact Size
Amphenol Tuchel Industrial T3376500U	For Male Pins	Black	Bayonet Lock	Panel Mount Snap-In	Crimp	Thermoplastic	IP40	Receptacle Housing	UL94 V-0	M16-5	100 °C	-40 °C	Unshielded	Contacts Not Included	Plastic	Keyed	Circular	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 5.14

General part information

5 Position Circular Connector Receptacle Housing Panel Mount, Snap-In
