1545A 0101000

Active

Belden Inc.

COAX 75 OHM RG6 18AWG

Search across all available documentation for this part.

Active

Belden Inc.

COAX 75 OHM RG6 18AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1545A 0101000

Cable Group	RG-6
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.18 in
Dielectric Diameter [diameter]	4.57 mm
Dielectric Material	Foam Polyethylene (FPE)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	6.86 mm
Jacket (Insulation) Diameter [diameter]	0.27 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	60%, 100%
Shield Material	Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	83
Wire Gauge	18 AWG

Part	Shield Material	Conductor Strand	Dielectric Material	VoP, Velocity of Propagation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Conductor Material	Jacket Color	Shield Type	Cable Type	Cable Group	Impedance	Wire Gauge	Shield Coverage	Jacket (Insulation) Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]
Belden Inc. 1545A 0101000	Aluminum	Solid	Foam Polyethylene (FPE)	83	6.86 mm	0.27 in	304.8 m	1000 ft	Copper Coated Steel	Black	Braid Foil	Coaxial	RG-6	75 Ohms	18 AWG	100% 60%	Poly-Vinyl Chloride (PVC)	0.18 in	4.57 mm	-40 °C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

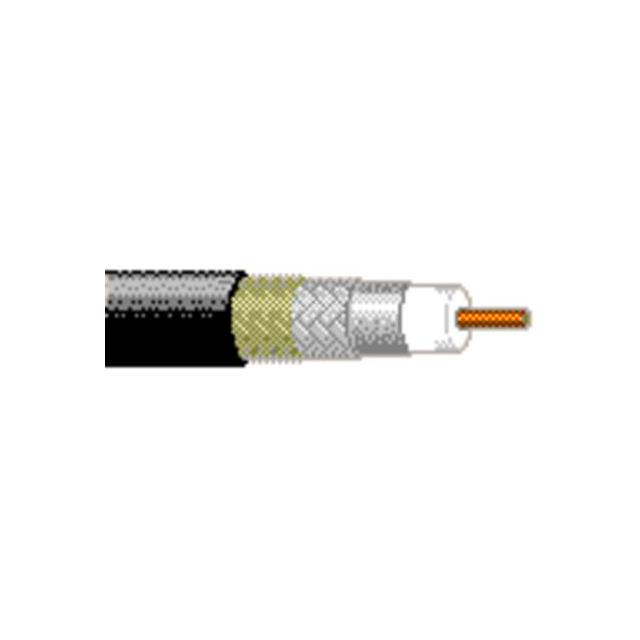

Coaxial Cable 18 AWG RG-6 1000.0' (304.80m) 75 Ohms
