S10451

Active

Switchcraft Inc.

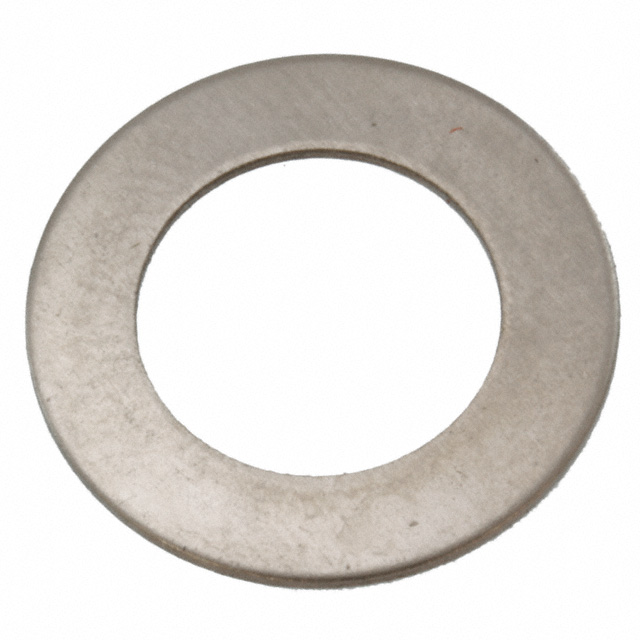

CONNECTOR ACCESSORIES WASHER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S10451

Active

Switchcraft Inc.

CONNECTOR ACCESSORIES WASHER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S10451

Diameter - Inside [diameter]	0.375 in
Diameter - Inside [diameter]	0.375 in
Diameter - Inside [diameter]	9.53 mm
Diameter - Outside [diameter]	0.625 "
Diameter - Outside [diameter]	0.625 in
Diameter - Outside [diameter]	15.88 mm
Material	Copper Alloy
Plating	Nickel
Thickness	0.02 in
Thickness	0.51 mm
Thread/Screw/Hole Size	0.375 in
Type	Flat

S10 Series

Part	Insulation Color	Features	Shielding	Number of Positions/Contacts	Mounting Type	Contact Material	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Current Rating (Amps)	Includes	Body Material	Body Color	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Connector Type	Housing Material	Voltage - Rated	Contact Material - Plating	Plating	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Thread/Screw/Hole Size	Thickness	Thickness	Material	Thickness	Thickness	Diameter - Shoulder	Diameter - Shoulder	Diameter - Shoulder	Length - Below Head	Length - Below Head	Length - Below Head	Thickness - Overall	Thickness - Overall	Contact Material - Plating [custom]	Ingress Protection
Switchcraft Inc. S1012	Blue	Strain Relief	Unshielded	2 Conductors 3 Conductors	Free Hanging (In-Line)	Copper Alloy	0.079 in 0.217 "	2 mm 5.5 mm	11 A	1 Connector 1 Handle	Copper Alloy	Black Silver	Solder	-40 °C	105 ░C	Female	Plug	Elastomer	24 VDC	Tin
Switchcraft Inc. S1015	Blue	Strain Relief	Unshielded	2 Conductors 3 Conductors	Free Hanging (In-Line)	Copper Alloy	0.079 in 0.217 "	2 mm 5.5 mm	11 A	1 Connector 1 Handle	Copper Alloy	Black Silver	Solder	-40 °C	105 ░C	Female	Plug	Elastomer	24 VDC	Tin
Switchcraft Inc. S10221																					Nickel	0.375 in	0.375 in	9.53 mm	0.625 "	0.625 in	15.88 mm	Flat	0.375 in	0.02 in	0.51 mm
Switchcraft Inc. S1028																						0.375 in	0.375 in	9.53 mm	0.625 "	0.625 in	15.88 mm	Flat			0.031 in	Plastic	0.03125 in	0.79 mm
Switchcraft Inc. S1017	Blue	Strain Relief	Unshielded	2 Conductors 3 Conductors	Free Hanging (In-Line)	Copper Alloy	0.079 in 0.217 "	2 mm 5.5 mm	11 A	1 Connector 1 Handle	Copper Alloy	Black Silver	Solder	-40 °C	105 ░C	Female	Plug	Elastomer	24 VDC	Tin
Switchcraft Inc. S1029																						0.375 in	0.375 in	9.53 mm	0.625 "	0.625 in	15.88 mm		0.375 in			Fibre			0.625 in	15.88 mm	0.625 in	0.79 mm	0.031 in	0.03125 in	1.63 mm	0.064 in
Switchcraft Inc. S10KS17	Blue	Cable Clamp Strain Relief Thread Lock	Unshielded	2 Conductors 3 Conductors	Free Hanging (In-Line)	Copper Alloy	0.079 in 0.217 "	2 mm 5.5 mm	11 A	1 Connector 1 Handle 1 Insulator Tube	Copper Alloy	Black Silver	Solder	-40 °C	105 ░C	Female	Plug	Elastomer	24 VDC																								Silver	IP68
Switchcraft Inc. S10451																					Nickel	0.375 in	0.375 in	9.53 mm	0.625 "	0.625 in	15.88 mm	Flat	0.375 in	0.02 in	0.51 mm	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.34
		5	$ 0.28
		10	$ 0.26
		25	$ 0.24
		50	$ 0.22
		100	$ 0.21
		250	$ 0.19
		500	$ 0.19

Description

General part information

S10 Series

3/8" Flat Washer 0.020" (0.51mm) Thick Copper Alloy Nickel
