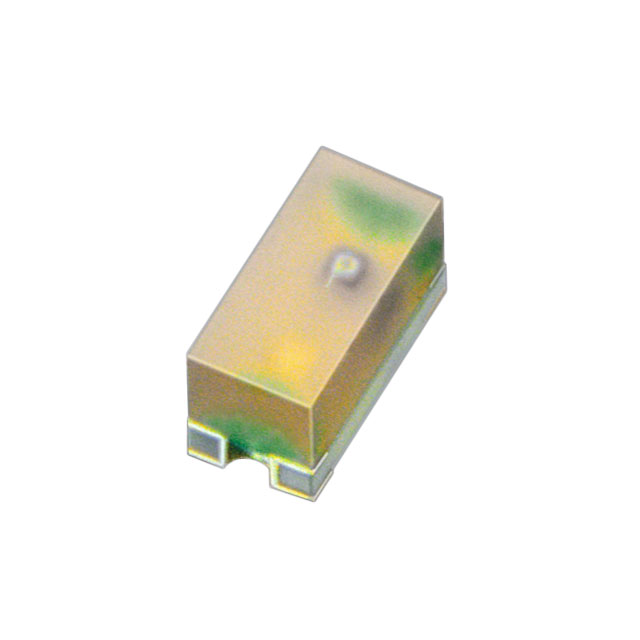

CL-195HR-CD-T
ActiveCitizen Finedevice Co Ltd
LED RED SMD
Deep-Dive with AI
Search across all available documentation for this part.
CL-195HR-CD-T
ActiveCitizen Finedevice Co Ltd
LED RED SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CL-195HR-CD-T |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.8 mm |
| Lens Size [x] | 1.6 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 23 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Voltage - Forward (Vf) (Typ) | 1.8 V |
| Wavelength - Dominant | 640 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.37 | |
| 10 | $ 0.21 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
| Digi-Reel® | 1 | $ 0.37 | ||
| 10 | $ 0.21 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
| Tape & Reel (TR) | 3000 | $ 0.08 | ||
| 6000 | $ 0.07 | |||
| 9000 | $ 0.07 | |||
| 15000 | $ 0.07 | |||
| 21000 | $ 0.07 | |||
| 30000 | $ 0.06 | |||
| 75000 | $ 0.06 | |||
| 150000 | $ 0.06 | |||
Description
General part information
CL-195 Series
Red 640nm LED Indication - Discrete 1.8V 0603 (1608 Metric)
Documents
Technical documentation and resources
No documents available
