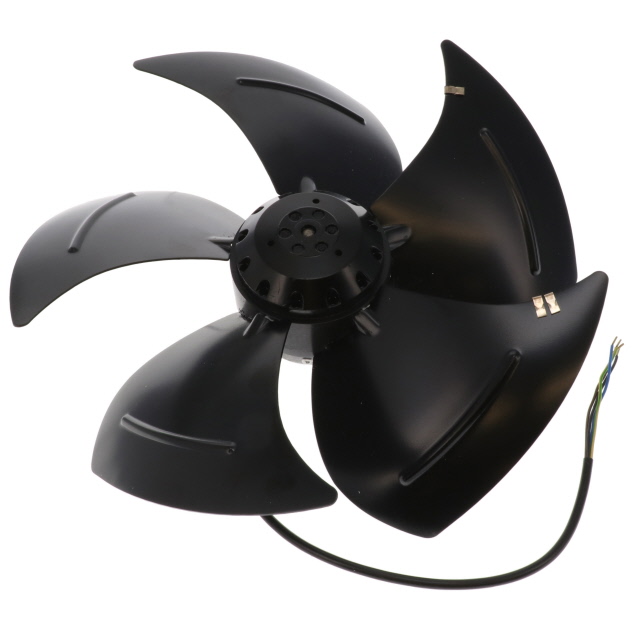

A4E330-AP18-01

Active

ebm-papst Inc.

AC AXIAL FAN

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC AXIAL FAN

Technical Specifications

Parameters and characteristics for this part

Specification	A4E330-AP18-01

Approval Agency	EAC, CCC
Bearing Type	Ball
Current Rating (Amps)	610 mA
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Steel
Operating Temperature [Max]	40 °C
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	140 W
RPM	1600 RPM
Size / Dimension	Round
Size / Dimension [diameter]	330 mm
Static Pressure	75 Pa
Static Pressure	0.301 in H2O
Termination	4 Wire Leads
Voltage - Rated	230 VAC
Width [y]	93 mm

Part	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Termination	Voltage - Rated	Bearing Type	Fan Type	Size / Dimension [diameter]	Size / Dimension	Current Rating (Amps)	Ingress Protection	Power (Watts)	Width [y]	Static Pressure	Static Pressure	Features	Approval Agency	Material - Blade
ebm-papst Inc. A4E330-AP18-13	-25 °C	40 °C	40 °C	-25 °C	1600 RPM	4 Wire Leads	230 VAC	Ball	Tubeaxial	330 mm	Round	610 mA	IP44	140 W	91 mm	75 Pa	0.301 in H2O	Capacitor Thermal Overload Protector (TOP)	CCC CSA UL	Steel
ebm-papst Inc. A4E330-AB18-09					1370 RPM	4 Position Rectangular Connector	230 VAC	Ball	Tubeaxial	332 mm		580 mA	IP44	130 W	92 mm			Capacitor Thermal Overload Protector (TOP)	CE	Steel
ebm-papst Inc. A4E330-AP18-01	-25 °C	40 °C	40 °C	-25 °C	1600 RPM	4 Wire Leads	230 VAC	Ball	Tubeaxial	330 mm	Round	610 mA	IP44	140 W	93 mm	75 Pa	0.301 in H2O	Capacitor Thermal Overload Protector (TOP)	CCC EAC	Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 230VAC Round - 330mm Dia Ball 4 Wire Leads
