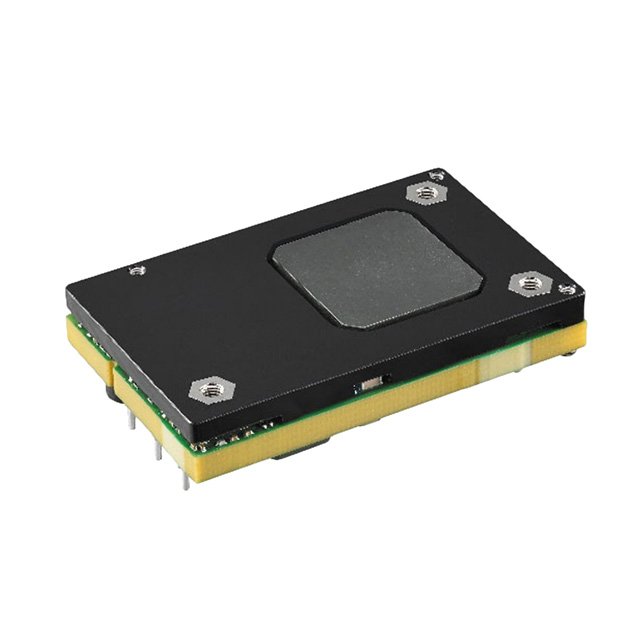

Q54SH12068NNDH

Active

Delta Electronics

DC DC CONVERTER 11.8V 802W

Search across all available documentation for this part.

Active

Delta Electronics

DC DC CONVERTER 11.8V 802W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Input (Max) [Max]	Voltage - Isolation	Efficiency	Applications	Voltage - Output 1	Current - Output (Max) [Max]	Type	Mounting Type	Control Features	Number of Outputs	Features	Supplier Device Package	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]
Delta Electronics Q54SH12084NNDH	40 V	85 °C	-20 C	Quarter Brick	60 V	707 V	97.3 %	ITE (Commercial)	11.8 V	84.8 A	Isolated Module	Through Hole	Active Low Enable	1	PMBus™ Remote On/Off	Quarter Brick	36.8 mm	1.45 in	2.3 in	15 mm	0.59 in	58.4 mm	1001 W
Delta Electronics Q54SH12060NRAH	40 V	85 °C	-20 C	Quarter Brick	60 V	707 V	97.7 %	ITE (Commercial)	11.8 V	60 A	Isolated Module	Through Hole	Active Low Enable	1	PMBus™ Remote On/Off	Quarter Brick	36.8 mm					2.3 in	708 W	58.4 mm	0.64 in	16.2 mm	1.45 "
Delta Electronics Q54SH12068NNDH	40 V	85 °C	-20 C	Quarter Brick	60 V	707 V	97.5 %	ITE (Commercial)	11.8 V	68 A	Isolated Module	Through Hole	Active Low Enable	1	PMBus™ Remote On/Off	Quarter Brick		1.45 in	2.3 in		0.57 "	58.4 mm	802 W		14.5 mm		36.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 11.8V 68A 40V - 60V Input
