430122-520

Active

Laird Thermal Systems, Inc.

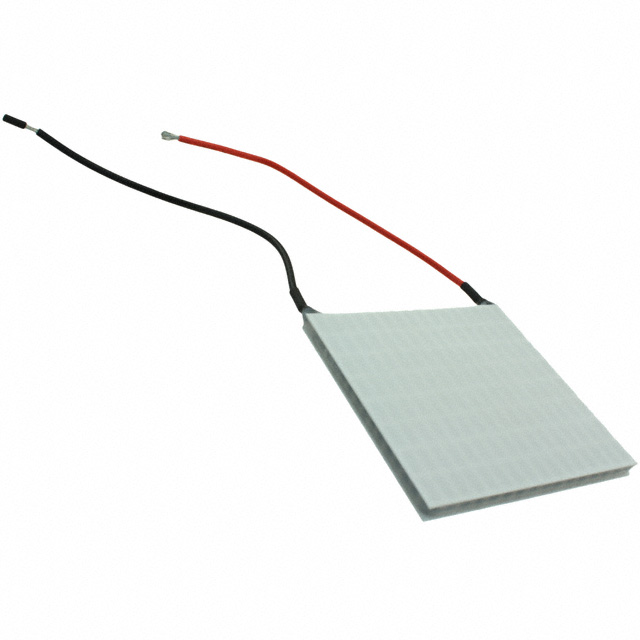

PELTIER CP2,127,06,L1,RT,W4.5

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER CP2,127,06,L1,RT,W4.5

Technical Specifications

Parameters and characteristics for this part

Specification	430122-520

Current - Max [Max]	14.3 A
Delta Tmax @ Th	67 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	4.57 mm
Number of Stages	1
Operating Temperature	80 °C
Resistance	940 mOhms
Size / Dimension	Square
Size / Dimension [x]	62 mm
Size / Dimension [y]	62 mm
Voltage - Max [Max]	14.5 V

Part	Current - Max [Max]	Height [z]	Delta Tmax @ Th	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Features	Number of Stages	Resistance	Voltage - Max [Max]	Operating Temperature
Laird Thermal Systems, Inc. 430122-509	14.3 A	4.57 mm	67 °C	62 mm	62 mm	Square	Lapped Lead Wires	1	940 mOhms	14.5 V
Laird Thermal Systems, Inc. 430122-520	14.3 A	4.57 mm	67 °C	62 mm	62 mm	Square	Lead Wires Sealed - Silicone RTV	1	940 mOhms	14.5 V	80 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 122.3W @ 25°C 14.3 A 80°C
